Bluetooth Project: How to program your firmware to module

After setup been done, here comes the next question: How to program the firmware in to the module. We are using some simple instruction in below for reader’s quick reference.

Hardware

You will need a Nordic nRF5X DK or a Segger J-link as programmer to load the firmware. To use Nordic nRF5X DK to debug the SoC as well, you will need to order corresponding nRF5X DK to match the SoC number. For example, order nRF52840 DK to debug nRF52840 SoC or order nRF52 DK to debug nRF52832/52810 SoC. But if you are only using it as programmer, any version of nRF5X DK will work as we only use the J-link on this board.

Software

Please download Nordic nRFGo Studio for programming. Remember to install nRF5X Command Line Tools if the board was not detected by nRFGo Studio. Once they are all connected, you can then start programming. Please make sure to “erase all” every time before programming.

For more tutorials and demo of sample code, please visit Nordic’s DevZone and Infocenter where have ample resources to utilize.

Programing

SoftDevice + Application

  1. Erase all first. Then program Softdevice and follow by Application code.
  2. Or you may combine code as stated in above. Erase all and follow by programing the combined code.

SoftDevice + Bootloader+ Application

  1. Either Erase all first.  Program the Softdevice and follow by Bootloader. and then use DFU to update the application code.
  2. Or suggested having a combined code (SofDevice+Application+Bootloader) for program. Simply erase all and follow by programming the combined code.
*Remark
Bootloader is needed for DFU (OTA) Function.
SDK 11 (included) and before – a legacy DFU method, which is simple but less security
SDK 12 (Included) and after – a latest DFU method, which has higher security.



To easy customer’s IoT device mass production, Raytac provide code pre-program service into module before shipment.  There are requirements listed in below for customers who need the service!

  1. A single, combined hex file is required. Please combine softdevice and application or/and bootloader (depending on your firmware design) together before programming. This will shorten programming time and help to manage your code easier. If you are not familiar with merging firmware, please download the instruction from the link:     https://mega.nz/#!Qg5UBJTQ!POWmmNNdapGqefHpB10YjpcuExLWwXnxDfBzcVrsTOw
  2.  Need a simple method to check programming status. The easiest way is to check the device name if device will broadcast device name after programming is done; or use I/O to trigger LED and its behavior. This does not aim to test any or full function of your device, only a simple method for the operator to know programming status.
nRF52840 MDBT50Q Module
nRF52840 MDBT50Q Module



Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com          email: cs@raytac.com          Tel: +886.2.3234.0208

Bluetooth Project: How to get your firmware development started!

Setting up Nordic’s IDE (Integrated Development Environment) is the first step into Bluetooth product development, and it’s also where most developers need support.

In order for developers to be able to smoothly set up their IDE, Raytac hereby provide you with a few easy steps.

First and foremost – In terms of IDEs, there are currently four different ones that are all viable; Segger Embedded Studio (SES), Keil C, IAR and GCC. Among these, SES and GCC are IDEs free of charge while Keil C and IAR both require the developer to pay a license fee to their respective company.

We at Raytac generally recommend SES, as it is an IDE brought forth by both Nordic and Segger together and it uses Segger J-Link. Although GCC is a free IDE, it only builds code and is impractical editting make file or debugging firmware. Thus, it’s not our primary choice.

Therefore, we will hereby provide you a step-by-step guide on how to set up your IDE when using SES.

  1. Where to download SES?

https://www.segger.com/downloads/embedded-studio/

圖片 1.png

  1. Where to Nordic SDK ( Use SDK v15.0.0 as an example)

https://developer.nordicsemi.com/nRF5_SDK/nRF5_SDK_v15.x.x/

  1. Install SES V3.34 and unzip SDK v15.0.0
After SES installed, you may find “Non-Commercial License”

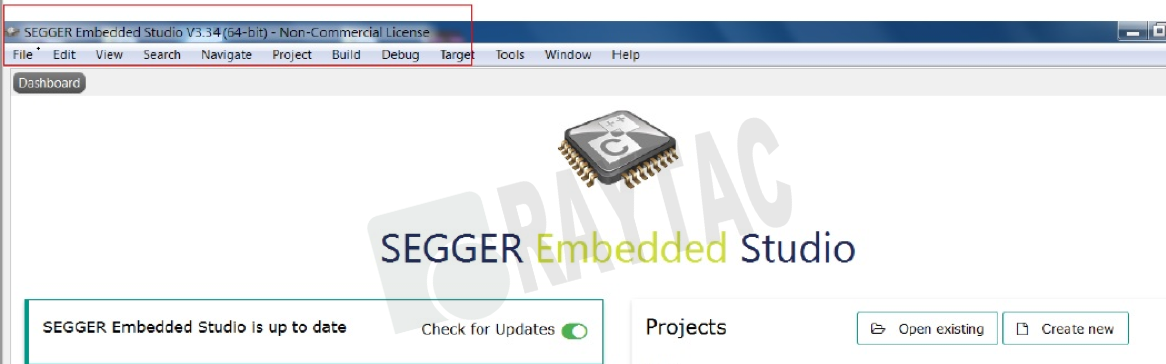

圖片 4.png

  1. SES License Key? http://license.segger.com/Nordic.cgi
  2. How to get free License Key?

Key in Name, Company name, Address and PC’s MAC address. Then press “Request License”, the “License key” will send to your mail box automatically.

Tips: How look up PC’s Mac address: Pls enter DOS mode,

Key in ipconfig/all,

The Mac address will be found in Ethernet card.

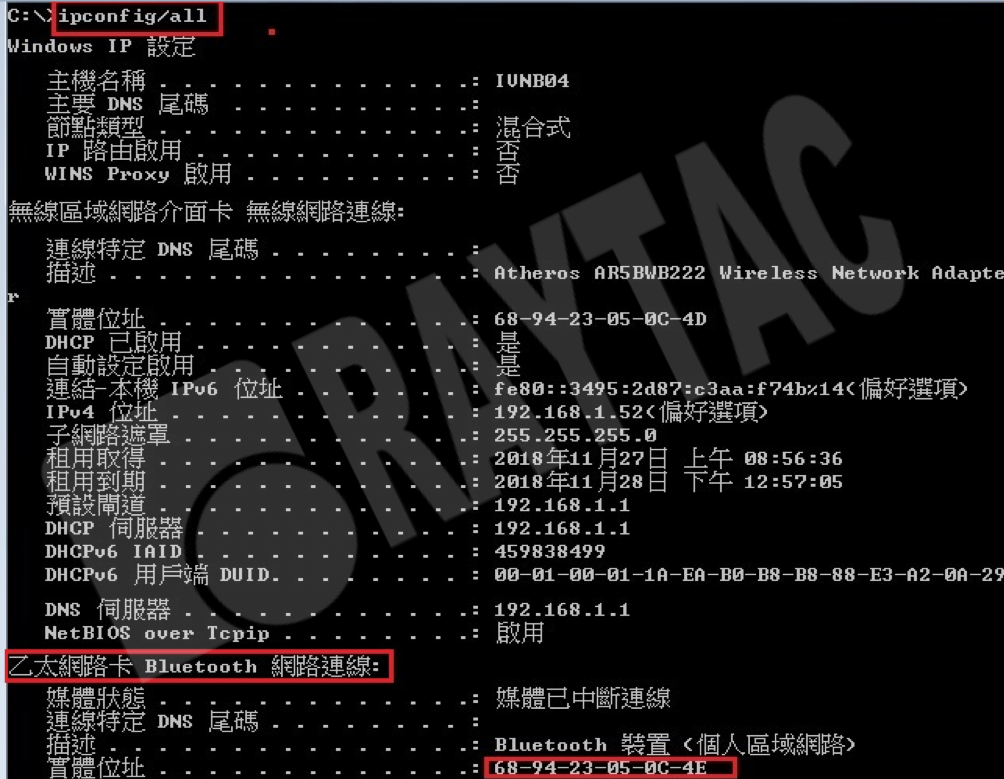

圖片 7.png

  1. Copy the license key from mail

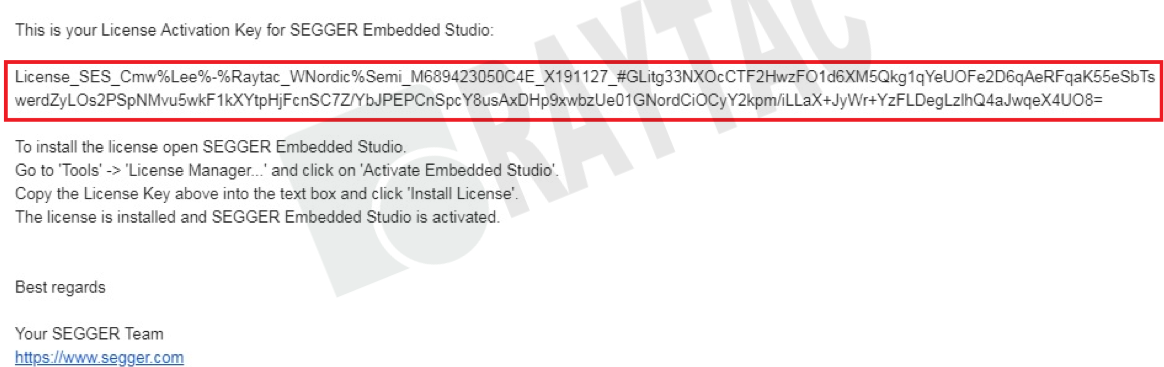

圖片 8

  1. Execute SES and find out the “License Manager” in “Tools” option

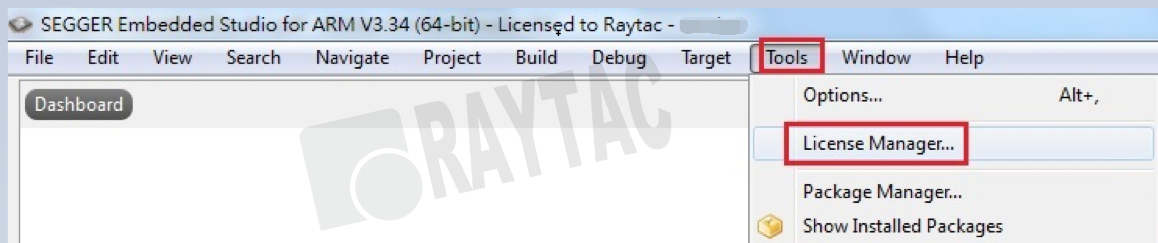

圖片 9

  1. Select “Activate Embedded Studio”, Paste the “License Key”, Click “Install License”

圖片 10.png

  1. When completed, click”Manage Activation”,shown “License key” well installed.

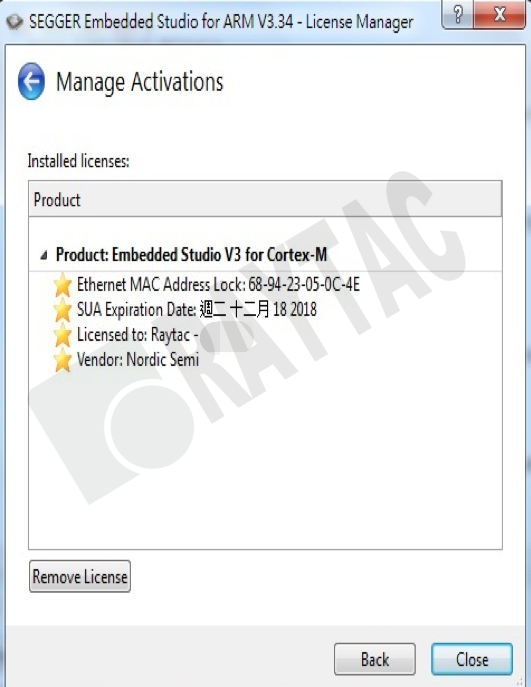

圖片 11

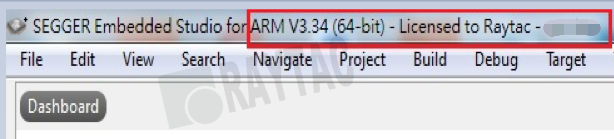

圖片 12.png

CMSIS Configuration Wizard,

  1. Select “Open Solution” in SES’s File option to open SDK v15.0.0 project

..\examples\ble_peripheral\ble_app_uart\pca10040\s132\ses\ble_app_uart_pca10040_s132.emProject

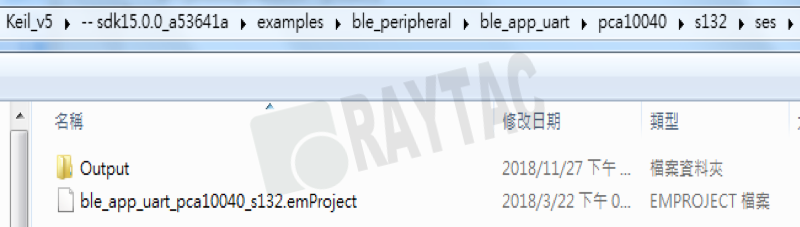

圖片 13圖片 14

  1. Select “Open Studio Folder” in SES’s File option, then select “External Tools Configuration”. You may find the display as below screen shot. Pls paste the below command. (The command can also be found in below link)

https://infocenter.nordicsemi.com/index.jsp?topic=%2Fcom.nordic.infocenter.sdk5.v15.0.0%2Fsdk_config.html&cp=4_0_0_1_6

圖片 15.png

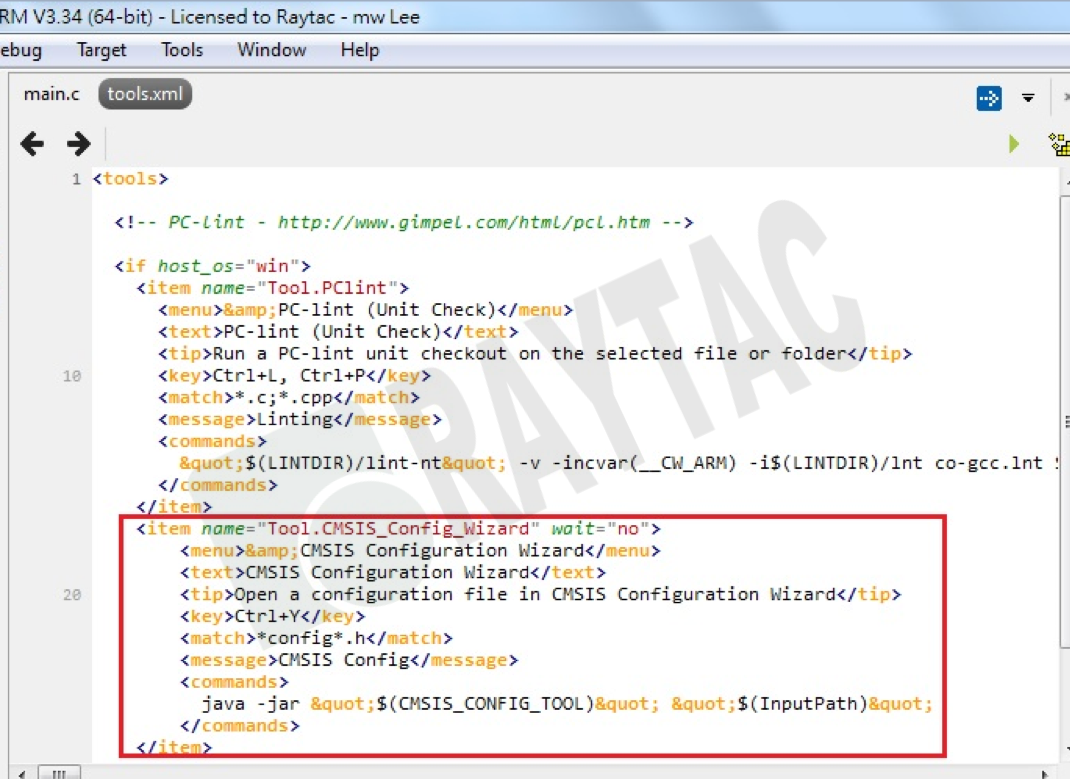

圖片 16

  1. Please save the “tools.xml”. Afterward, developers may able start over build code and debug works.
