Intro: With the ready built code of zephyr.hex file for net core and application core individually, we would like to proceed code flashing into the MDBT53/53V Nordic nRF5340 BLE module.
Ready Built Code Programming Steps
Execute nRF Connect >> Programmer > > Open

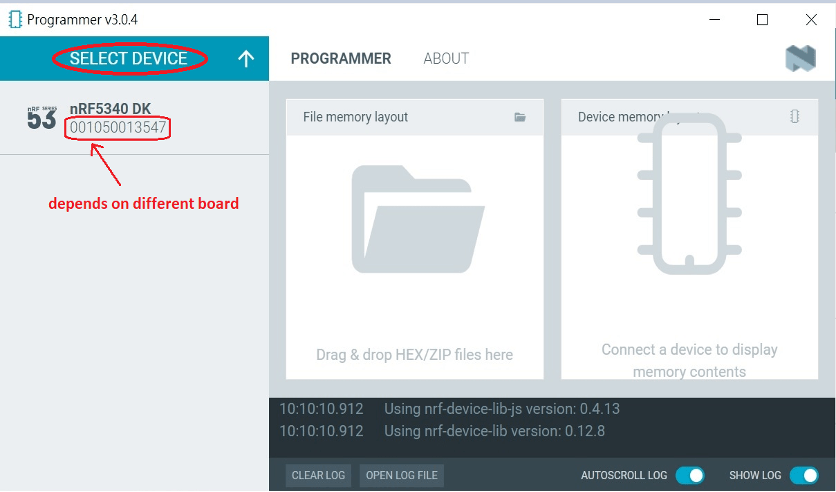

Click “SELECT DEVICE” >> Find icon of “nRF5340 DK” which is detected by the programmer app
Click icon of “nRF5340 DK” >> “Erase All” to remove the flash memory from MDBT53/53V BLE Module
Click “Add File” to load the net core zephyr.hex and application core zephyr.hex both into programmer

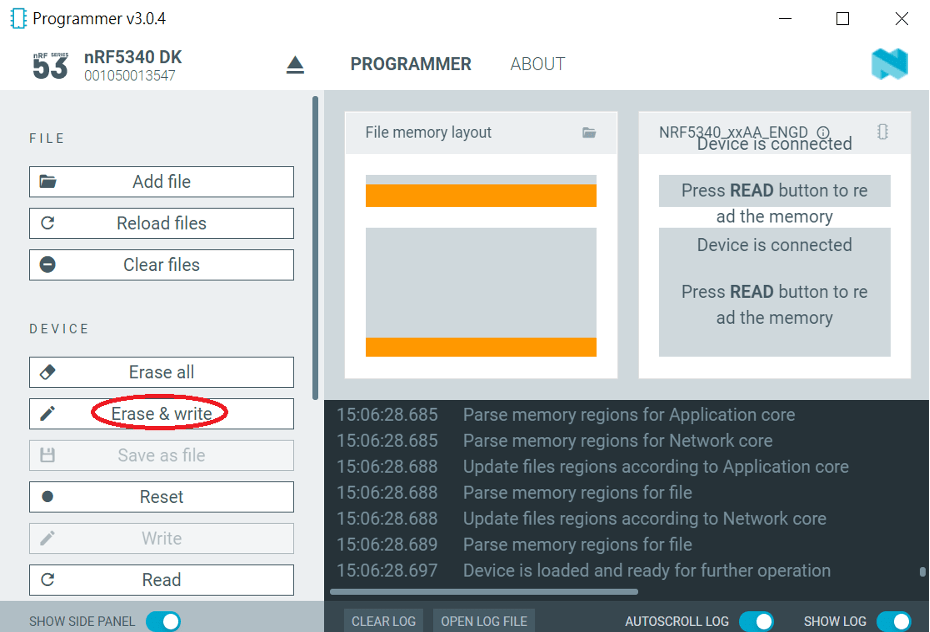

Do “Erase & Write ” to execute the flashing process for both zephyr.hex into memory of MDBT53/53V Module.
To validate the wireless broadcast of default name “Nordic_UART_Service” from MDBT53/53V Module, please check on the “nRF Connect for mobile” APP and do “Scan device” through your mobile. Once the device name is detected in your mobile , the wireless connection is successfully done.
You may find more resources in below link:
Hardware set up works
“How To Get started with Nordic nRF5340 Project by Raytac MDBT53/MDBT53V Development Kit Demo Board”
“How To Get Started With nRF5340 Module Program Coding and Compiling” (Click Me)
