Head’s Up~ nRF52805 Compact Modules Now Here~

Looking for the best nRF52805 modules partner?

Here comes Raytac’s nRF52805 compact size module lines which are small enough for most applications.

Why waste time keep looking around!


Raytac Corporation 勁達國際電子有限公司

A BT5.2 & BT5.1 & BT5 module maker based on Nordic nRF52 & nRF51 solution
(nRF5340 & nRF52840 & nRF52833 & nRF52832 & nRF52820 & nRF52811 & nRF52810 & nRF52805 & nRF51822)

Welcome nRF52805 & nRF52820 module on board

It figures, Raytac launched nRF52820 & nRF52805 modules soon after Nordic released the SoC. As usual, all modules by Raytac are Bluetooth qualified and regulation pre-certified by FCC/IC/CE/SRRC/Telec/KC/SRRC/NCC.
With both modules added on the list, whole nRF52 series module road map now has become comprehensive and completed.

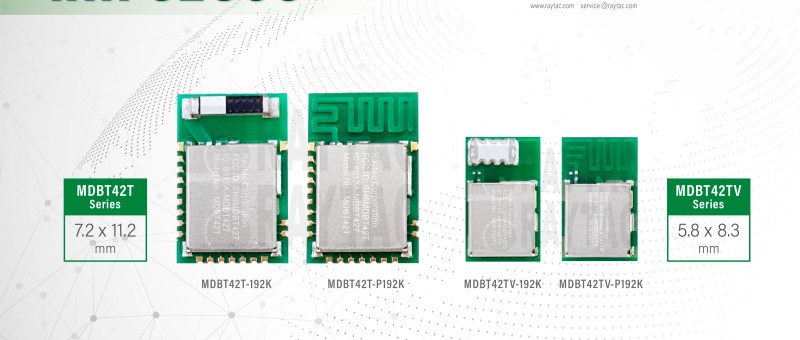

#nRF52805 Solution
MDBT42T series designed for highly cost constrained.

MDBT42T-P192K (Click me for more information)

MDBT42T-192K (Click me for more information)

MDBT42TV series designed for highly size constrained.

MDBT42TV-P192K (Expected in Oct. 2020)

MDBT42TV-192K (Expected in Oct. 2020)

#nRF52820 SolutionMDBT50 series designed for long range connectivity and USB interface.

MDBT50-P256R (Click me for more information)

MDBT50-256R (Click me for more information)

Raytac Corporation 勁達國際電子有限公司

A BT5.2 & BT5.1 & BT5 module maker based on Nordic nRF52 & nRF51 solution
(nRF5340 & nRF52840 & nRF52833 & nRF52832 & nRF52820 & nRF52811 & nRF52810 & nRF52805 & nRF51822)

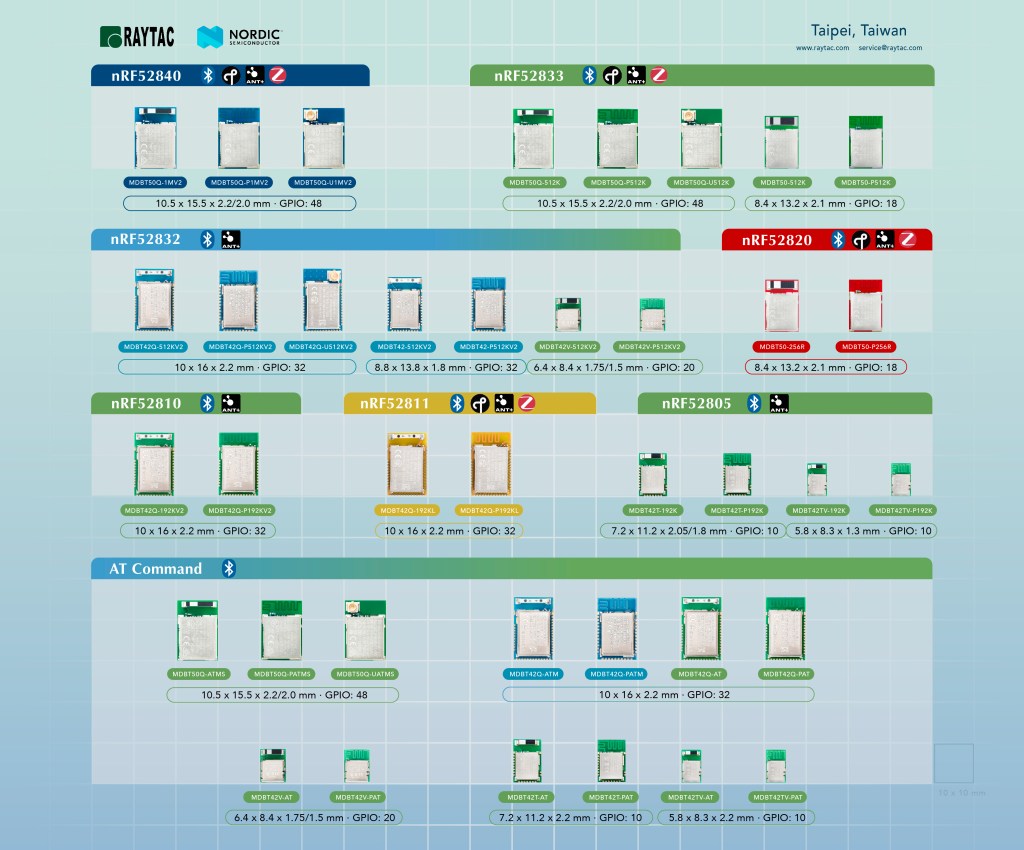

Nordic nRF52 Module by Raytac (Base Line Series)

Bluetooth applications not always tough and complicated.

Most cases, Bluetooth applications are brief and require simple bridge functionality only such as UART service for Bluetooth Low Energy (BLE) or SPP for Classic Bluetooth (BT3 or BT2). Raytac adopted Nordic nRF52 base line solutions (nRF52805 / nRF52810 / nRF52811 / nRF52820) offer a series of base line modules with different form factor and antenna options for selection.

nRF52805: GPIO: 10 / Flash: 192K / RAM: 24K

nRF52810: GPIO: 32 / Flash: 192K / RAM: 24K

nRF52811: GPIO: 32 / Flash: 192K / RAM: 24K

nRF52820:GPIO: 18 / Flash: 256K / RAM: 32K

Excepting modules,  Raytac even developed a firmware pre-loaded modules for base line solution which is called as AT command module series. AT command module collected a list of most common command that transparent transmission may need. A well developed firmware pre-loaded modules bring developers or customer a quick access to Bluetooth. Simply deploy the module onto applications and projects can be benefited with the maximum flexibility, design free, time saving advantage.

AT Command Module (Peripheral)

AT Command Module (Central)

AT Command Module (Central+Peripheral) & Long Range
