Nordic nRF52820 solution, MDBT50 series Module by Raytac

Nordic announced their 6th multi-protocol solution of nRF52 series with nRF52820, which supports Bluetooth Low Energy (BLE), Bluetooth mesh, Thread, Zigbee and 2.4GHz proprietary wireless connectivity.

Like other nRF52 siblings, nRF52820 highlights a powerful  64MHz 32bit Arm Cortex-M4 processor, includes 256Kb Flash Memory and 32Kb RAM, features of Bluetooth 5.2, 5.1 and 5 including long range and high-throughput of 2Mbits per second, as well as direction finding, low energy power control and low energy isochronous channels.

A full speed (12Mbits per second) USB 2.0 interface and 1.7~5.5V operation voltage bring a wide range of commercial and industrial wireless applications to nRF52820. To support nRF52820’s development, Nordic released SoftDevice S112, a new memory-optimized central stack. S112 now released as a alpha and will have full SDK (SDK V16.0.0) support coming in Q2 2020.

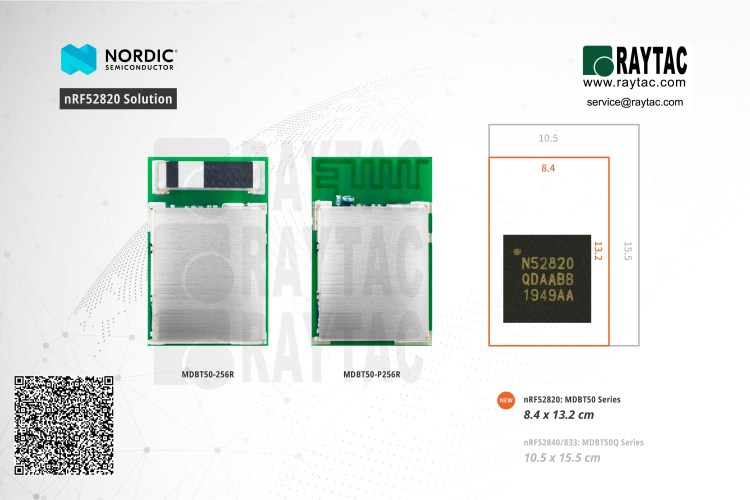

Raytac nRF52820 Module, MDBT50 Series
Nordic nRF52820 Modules by Raytac, MDBT50 Series

Nordic nRF52810 Module MDBT42Q-P192K by Raytac in Mass Production

With Nordic nRF52810 SoC volume production, Raytac announced nRF52810 module MDBT42Q-P192K and MDBT42Q-192K will be available by 2017/11

nRF52810 SoftDevice S112 Released

nRF52810 is an ultra-low power 2.4 GHz wireless system on chip (SoC) integrating the an ARM® Cortex®-M4 CPU with 24K RAM and 192K flash memory, supports BT5.0 (BLE),  , the ANT™ protocol, and a range of proprietary 2.4 GHz protocols.
Differ from nRF52832 solution which developed based on S132 Softdevice, Nordic has released S112 for nRF52810 in order to increase the flexibility of application code in limited flash memory size.
Raytac strongly suggest all customer to download the product specification and Softdevice in below link for further nRF52810 development.

Raytac, meanwhile, has released MDBT42Q series module correspondent to nRF52810 solution. MDBT42Q series module is a pin to pin design for both nRF52832 and nRF52810 solution and equipped 2 kinds of antenna, Chip antenna and PCB antenna.
nRF52810 solution module MDBT42Q chip antenna P/N.: MDBT42Q-192K
nRF52810 solution module MDBT42Q PCB antenna P/N.: MDBT42Q-P192K
nRF52810 module MDBT42Q Specification
  nRF52810 Module MDBT42Q-P.jpg               nRF52810 Module MDBT42Q.jpg
