Raytac announces release of AN54H20 Series Module based on Nordic’s nRF54H20 chip solution

2024 年 05 月 02 日2024 年 05 月 02 日by TonyYin RaytacLeave a comment

Raytac Corporation, a Nordic-recommended third-party module manufacturer based in Taiwan, today announces the upcoming release of the AN54H20 modules, which are built on the base of Nordic’s nRF54H20 SoC.

The AN54H20 module comes in a 9.8 x 13.8 x 1.8mm (0.37 by 0.53 by 0.07 inches) dimension factor and offers 3 versions of high-performance antennas, including ceramic chip antenna, PCB-mounted antenna, and uFL connector for external antenna. Output power is adjustable up to +10 dBm and data rate is adjustable up to 4Mbps to maximize RF performance.

Powered by multiple processors, AN54H20 modules provide the IoT field with access to a whole set of improved features, including 2MB flash memory/1MB RAM and bigger processing power for more complicated computations. It also enhances protection against security threats, providing developers with protection while building technologically advanced IoT applications.

Hardware wise, AN54H20 inherits nRF54H20’s set of versatile, advanced, and low-power peripherals alongside DMA support, including high-speed USB, CAN-FD controller, 14-bit ADC, 2 x I3C and plenty more. What’s more revolutionary is that AN54H20 brings power efficiency to a whole new level through accurately controlling currency consumptions under various modes, allowing smaller batteries to be implemented in the applications while increasing its life expectancy.

“We see the AN54H20 series as a potential market changer. The compact size gives developers a seamless switch from the previous generation modules to AN54H20, and the remarkable power efficiency and characteristics AN54H20 brings will offer a magnificent effect to the inescapable hot trend of IoT and other various industries.” – Lyon Liu, President of Raytac Corporation.

Product link: https://www.raytac.com/product/index.php?index_m1_id=81&index_m2_id=102

Features

– Compact size: 9.8 mm x 13.8 mm x 1.8 mm (0.37″ x 0.53″ x 0.07″)

– Ceramic chip, PCB, and u.FL connector variations available

– 64 GPIOs

– Dual Arm Cortex-M33 processors

– Dual RISC-V co-processors

– Flash memory: 2 MB and RAM: 1 MB

– Max TX power: +10dBm

– Max data rate: 4Mbps

– Enhanced security features

– Outstanding power efficiency

– Advanced and expanded peripherals available

– Highly flexible multiprotocol, ideal for Bluetooth Low Energy, LE Audio(Auracast), Bluetooth mesh, Thread, ANT+, Zigbee, and Matter applications

– Pre-certified with multiple global regulations & Bluetooth qualification

– RoHS-/REACH-compliant

Samples of AN54H20 will be available in Q3 2024, please subscribe to Raytac’s WordPress blog:

https://raytac.blog

For more upcoming information.

Welcome to send an inquiry to: service@raytac.com for further discussions.

Edited by Sales Manager: Mr. Tony Yin

Raytac Corporation 勁達國際電子股份有限公司 A company of Abietec
Bluetooth & WiFi module maker based on Nordic nRF54, nRF53, nRF52, nRF7002 solution
BT5.4 &BT5.3 & BT5.2 & BT5.1 Qualified, FCC/IC/CE/Telec/KC/RCM/SRRC/NCC Pre-Certified.

Bluetooth Solution: nRF54, nRF5340, nRF52840, nRF52833, nRF52832, nRF52820, nRF52811, nRF52810, nRF52805, nRF51822

WiFi Solution: nRF7002
http://www.raytac.com
email: service@raytac.com
Tel: +886.2.3234.020

Raytac Corporation at the “Embedded World 2024″

2024 年 03 月 14 日by mandyraytaccomLeave a comment

Dear Esteemed Participants,

Raytac Corporation is excited to extend our warm welcome to you once again at Embedded World 2024, scheduled to be held from April/9/2024 to April/11/2024 at the Nuremberg Exhibition Centre, Germany.

As IoT and Bluetooth Low Energy gain momentum, they emerge as essential catalysts for future development. Following Nordic Semiconductor’s lead in wireless technology, Raytac remains committed to releasing a wide range of modules to meet developers’ needs.

This year, we’re also introducing Wi-Fi modules AN 7002 alongside the nRF 7002 and nRF 54 series modules, so stay tuned for what’s to come.

Based on your requirements, we will showcase more applications of modules at the exhibition, as well as demonstrate how Raytac Corporation can save your time and expenses during the development stage and overall costs.

Raytac Corporation is delighted to invite you joining our team at:

HALL 3
Booth 3-111
M2M Area

To be a part of this dynamic convergence of ideas, innovations, and opportunities.

For more information and details into Raytac Corporation at embedded world 2024 can now be found in the preview of our digital event platform from following link:

https://www.talque.com/app#/mobile/ngx/org/wQD0JF2hF4nPuB9bezaD/vendor-detail/exibitor/MF2BLg9stimJBHyL7l6C

We eagerly anticipate your participation at the Embedded World Exhibition and the invaluable contributions you will bring to this vibrant gathering.

See you at the exhibition!

Best regards,

Edited by Sales Manager: Ms. Mandy Chao

Raytac Corporation 勁達國際電子股份有限公司

Bluetooth & WiFi module maker based on Nordic nRF54, nRF53, nRF52, nRF7002 solution

BT5.4 &BT5.3 & BT5.2 & BT5.1 Qualified, FCC/IC/CE/Telec/KC/RCM/SRRC/NCC Pre-Certified. Bluetooth Solution: nRF54, nRF5340, nRF52840, nRF52833, nRF52832, nRF52820, nRF52811, nRF52810, nRF52805, nRF51822 WiFi Solution: nRF7002

http://www.raytac.com

email:service@raytac.com

Tel: +886.2.3234.0208

Optimizing functionality on nRF52 – Introducing Raytac bluetooth module with enabled Access Port Protection

2024 年 02 月 21 日2024 年 02 月 21 日by mandyraytaccomLeave a comment

Definition of Approtect (Access Port Protection):

In Nordic Semiconductor products, the enhanced APprotect feature has been integrated into the nRF52 series microcontrollers. APprotect (Access Port Protection) is a crucial security feature designed to safeguard the device’s application, compiled code, with read-back protection mechanism, against unauthorized access and modifications. This protection is essential for preventing unauthorized access and software tampering.

Effectively leveraging the improved Approtect feature on nRF52 series microcontrollers to enhance device application security and reliability is a significant concern for current developers and engineers.

This year, Raytac Corporation has launched low-energy Bluetooth modules for the third edition IC nRF52840 APprotection Solution and nRF52832 APprotection Solution.

These modules not only retain the functionalities of the original nRF52840 and nRF52832 low-energy Bluetooth modules but also comprehensively upgrade security by adding the APprotect feature to prevent hackers from accessing and rewriting programs without authorization.

Here is a detailed explanation of the nRF52 third edition low-energy Bluetooth modules by Raytac Corporation:

Raytac Corporation APProtection Bluetooth Module Series:

The encoding principle is to use ‘EN’ after the original model number to represent ‘encrypted’ instead of ‘V2’.

For example, in the nRF52840 series, the Raytac model MDBT50Q-1MV2 has “V2” replaced with “EN” for the third edition, hence the third edition model is named MDBT50Q-1MEN.

MDBT50Q Ceramic Antenna Series:

MDBT50Q-1MEN :
Equipped with a ceramic antenna module suitable for long-distance or complex environment wireless transmission.

MDBT50Q-P PCB Antenna Series:

MDBT50Q-P1MEN:
Equipped with a PCB antenna module suitable for general environment wireless transmission.

Designed for external antenna requirements,

MDBT50Q-U1MEN:

This module features a u.FL connector for external antenna use, suitable for ultra-long-distance wireless transmission.

Specification：
[nRF52840] MDBT50Q-1MEN & MDBT50Q-P1MEN Spec (Ver.A)
[nRF52840] MDBT50Q-U1MEN Spec (Ver.A)

Development Board:

MDBT50Q-DB : An excellent choice for those who want to delve deeper into and conduct more tests with the Nordic nRF52840. This development and debugging board based on the MDBT50Q-1MV2 (ceramic antenna) module has all GPIOs of the module pulled out, facilitating rapid connection to other devices for firmware development and verification using jumper wires.

The same encoding principle applies to the nRF52832 series, and the MDBT42Q series follows suit.

MDBT42Q Ceramic Antenna Series:

MDBT42Q-512KEN comes with a ceramic antenna module, suitable for long-distance or complex environment wireless transmissions.

MDBT42Q-P PCB Antenna Series:

MDBT42Q-P512KEN features a PCB antenna module, suitable for general environment wireless transmissions.

MDBT42Q-U512KEN , designed for external antenna requirements, comes with a u.FL connector module suitable for ultra-long-distance wireless transmissions.

Specification：
[nRF52832] MDBT42Q-512KEN & MDBT42Q-P512KEN Spec (Ver.A)
[nRF52832] MDBT42Q-U512KEN Spec (Ver.A)

Development Board:

MDBT42Q-DB development board is based on the MDBT42Q-512KV2 (ceramic antenna) module and is designed for development and debugging purposes.

Other Reference Links:

Nordic 3rd Party Modules/Modems(Raytac’s modules are all qualified Nordic 3rd Party Bluetooth low energy module, please go following website for more detailed information.)

Module Appearance: The third edition features an additional black dot in the bottom left corner of the metal shell for easy identification of its purpose.
While the device with readback protection enabled, issuing ERASEALL command is a must and the only method to unlock the device before proceeding with programming.
It is recommended to use nRF_SDK v17.1.0 or later versions to write code for the third edition.

Credit to Nordic Infocenter website :https://infocenter.nordicsemi.com/topic/comp_matrix_nrf52840/COMP/nrf52840/nRF52840_ic_rev_sdk_sd_comp_matrix.html

Credit to Nordic Infocenter website:
https://infocenter.nordicsemi.com/topic/comp_matrix_nrf52832/COMP/nrf52832/ic_rev_sdk_sd_comp_matrix.html

For further clarity on the differences between the second edition IC Bluetooth modules and the third edition IC Bluetooth modules, the following table and links are provided for reference:

Edited by Sales Manager: Ms. Mandy Chao

Raytac Corporation 勁達國際電子股份有限公司
Bluetooth & WiFi module maker based on Nordic nRF54, nRF53, nRF52, nRF7002 solution
BT5.4 &BT5.3 & BT5.2 & BT5.1 Qualified, FCC/IC/CE/Telec/KC/RCM/SRRC/NCC Pre-Certified. Bluetooth Solution: nRF54, nRF5340, nRF52840, nRF52833, nRF52832, nRF52820, nRF52811, nRF52810, nRF52805, nRF51822 WiFi Solution: nRF7002
www.raytac.com
email:service@raytac.com
Tel: +886.2.3234.0208

Nordic nRF52820 solution, MDBT50 series Module by Raytac

2020 年 04 月 21 日2020 年 06 月 19 日by Raytac CorporationLeave a comment

Nordic announced their 6th multi-protocol solution of nRF52 series with nRF52820, which supports Bluetooth Low Energy (BLE), Bluetooth mesh, Thread, Zigbee and 2.4GHz proprietary wireless connectivity.

Like other nRF52 siblings, nRF52820 highlights a powerful 64MHz 32bit Arm Cortex-M4 processor, includes 256Kb Flash Memory and 32Kb RAM, features of Bluetooth 5.2, 5.1 and 5 including long range and high-throughput of 2Mbits per second, as well as direction finding, low energy power control and low energy isochronous channels.

A full speed (12Mbits per second) USB 2.0 interface and 1.7~5.5V operation voltage bring a wide range of commercial and industrial wireless applications to nRF52820. To support nRF52820’s development, Nordic released SoftDevice S112, a new memory-optimized central stack. S112 now released as a alpha and will have full SDK (SDK V16.0.0) support coming in Q2 2020.

Raytac nRF52820 Module, MDBT50 Series — Nordic nRF52820 Modules by Raytac, MDBT50 Series

Continue reading “Nordic nRF52820 solution, MDBT50 series Module by Raytac”

Raytac Released nRF52840 USB Dongle “MDBT50Q-RX”

2018 年 12 月 19 日2019 年 01 月 24 日by Raytac Corporation3 Comments

Raytac released nRF52840 USB Dongle which deployed MDBT50Q-P1M module offers a Bluetooth 5 specification granted, FCC/IC/Telec(MIC)/KC/SRRC/NCC/WPC pre-certified, and CE/RCM compliant solution.

Raytac nRF52840 Dongle MDBT50Q-RX — Abstract molecule structure on dark blue color background. Vector illustration of Communication – network for futuristic technology concept

Continue reading “Raytac Released nRF52840 USB Dongle “MDBT50Q-RX””

Come to visit Raytac at Embedded World #Hall 3 / 3-613

2018 年 02 月 21 日2018 年 02 月 21 日by Raytac CorporationLeave a comment

With over 1,000 exhibitors gathering in Nuremberg, Germany, Embedded World has become one of the biggest trade fair among the IoT Technologies.

Raytac will be in attendance and present our latest module MDBT50Q series which are built based on Nordic nRF52840 solution and Mesh network implements.

We look forward to seeing you there.

Raytac Corporation

A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution

(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)

www.raytac.com Tel: +886.2.3234.0208

email: service@raytac.com

Raytac Blog

Nordic Mesh Network Development Update

2018 年 01 月 31 日2018 年 11 月 19 日by Raytac CorporationLeave a comment

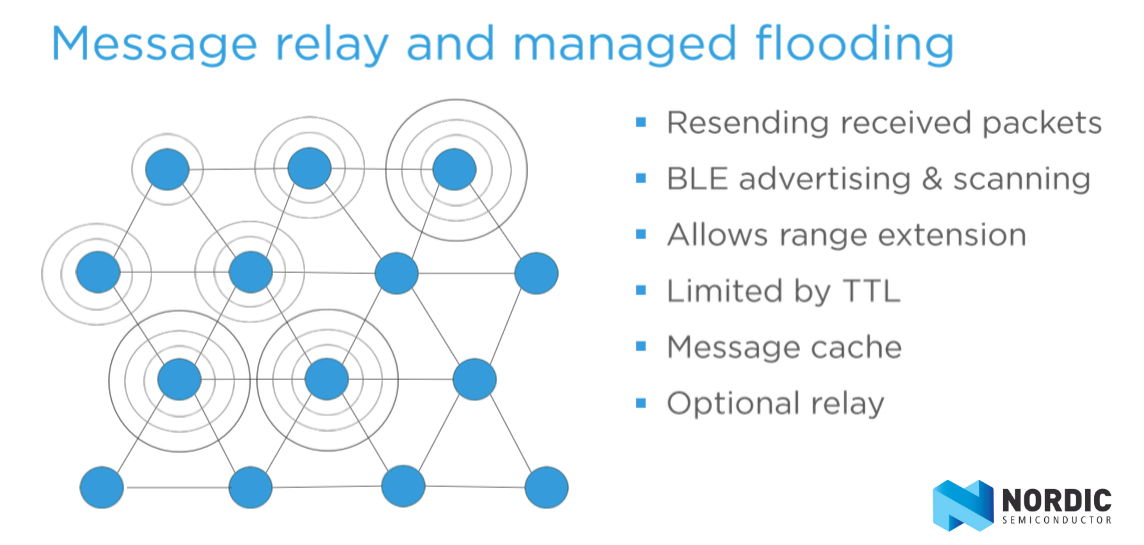

Mesh Network has grabbed the highlight of BLE development.
To keep all Nordic users get the updated information post, Raytac keep closely watching for every step Nordic achieved and summarized current status in below.

Continue reading “Nordic Mesh Network Development Update”

Nordic Licensed A Free Development IDE-Embedded Studio

2018 年 01 月 07 日2018 年 01 月 07 日by Raytac CorporationLeave a comment

Nordic announced it recently has signed with SEGGER to license all developers allowed to use Embedded Studio to develop Nordic nRF51 & nRF52 application freely without any limitations.

Engineers designing nRF51 and nRF52 Series Bluetooth Low Energy SoC applications now gain free access to SEGGER’s commercial Integrated Development Environment

Getting started with SEGGER Embedded Studio and the nRF5 SDK Tutorial Video:

Continue reading “Nordic Licensed A Free Development IDE-Embedded Studio”

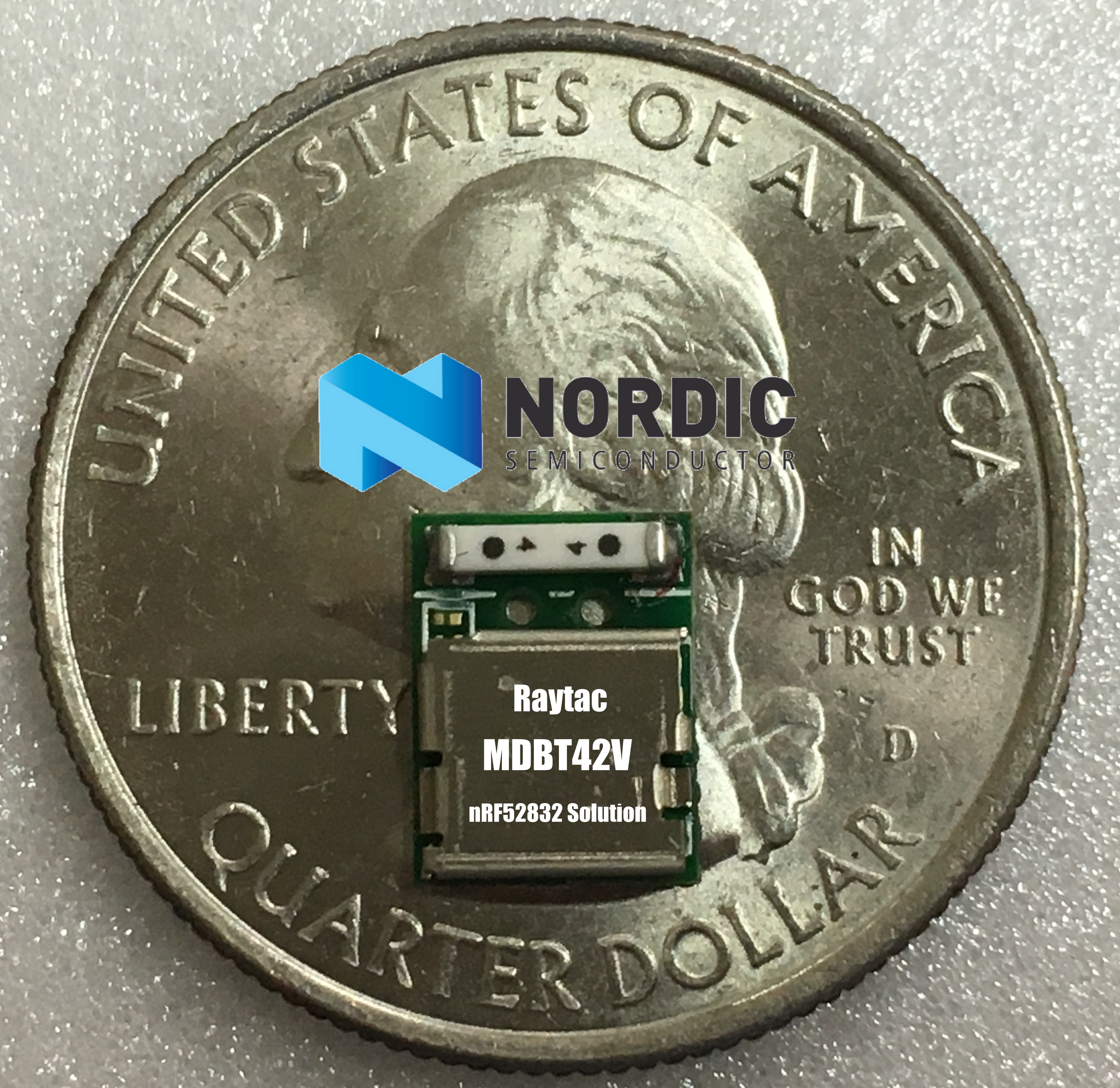

Nordic Solution nRF52832 Module (P/N: MDBT42V) FCC/IC/CE/Telec Certificate Granted

2017 年 09 月 13 日2017 年 09 月 14 日by Raytac CorporationLeave a comment

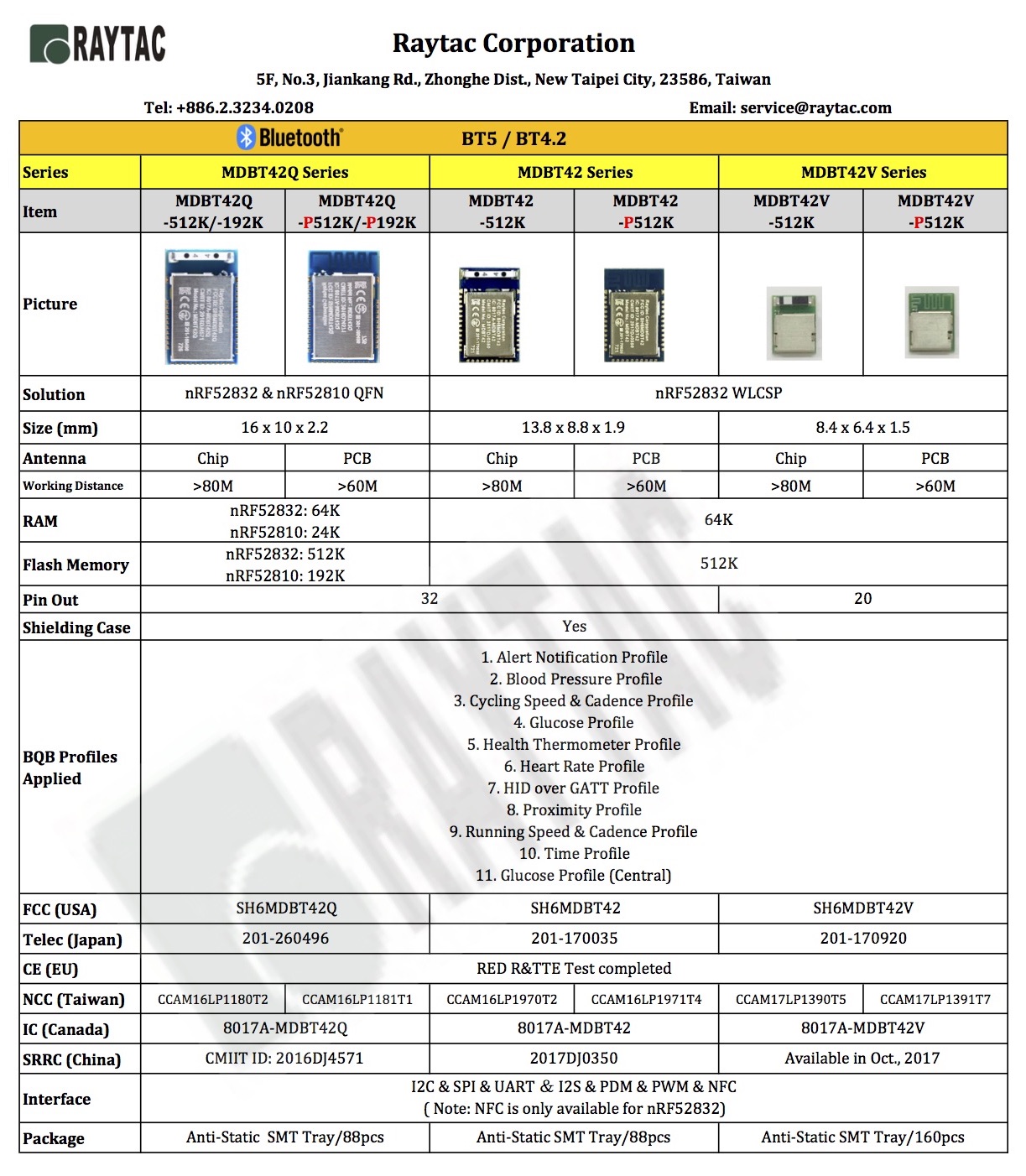

Raytac is proceeding the EE policy, refer to Easy Employ, which aims to provide customers an easy and friendly developing environment and time to market efficiency.

The critical factors to assist customers dramtically, not surprised, is the certificate of Bluetooth specification and Regional safety regulation compliance. Not only because of the cost, but also the knowledge and time consuming.

Continue reading “Nordic Solution nRF52832 Module (P/N: MDBT42V) FCC/IC/CE/Telec Certificate Granted”

Nordic Semiconductor News Release For Raytac’s BT5.0 Module

2017 年 09 月 07 日2017 年 09 月 07 日by Raytac CorporationLeave a comment

Nordic Semiconductor announces that Raytac Corporation has selected Nordic’s nRF52832 wafer level-chip scale package (WL-CSP) System-on-Chip (SoC) for its compact Bluetooth low energy, Bluetooth® 5 ready MDBT42V and MDBT42V-P modules……… The modules comes in an 8.4 by 6.4 by 1.75mm form factor and offers a high performance ceramic chip antenna delivering a wireless connectivity range of over 100m in open space according to Raytac.

For more detail, please refer to below link of Nordic News Releases Press

https://www.nordicsemi.com/News/News-releases/Product-Related-News/Nordic-Semiconductor-powered-Bluetooth-low-energy-modules-ease-design-of-Bluetooth-5-wireless-solutions-for-space-constrained-IoT-applications
