Raytac Corporation at IT Week Hall 3 & 4 / 11-22

With over 600 exhibitors gathering in Tokyo, Japan from April 10-12, IT Week has become one of  the biggest exhibitions within the IoT Technology sector.
Raytac is pleased to be attending this years IT Week and present our full range of module family based on Nordic nRF51822, nRF52832 and nRF52840.

Meanwhile, the latest product, MDBT50Q-RX, a multi protocol nRF52840 dongle will make its second public appearance which powers up the most advanced IoT and Mesh network implementations.

Bluetooth – Current and soon-to-perish versions

Bluetooth has been around for quite some time, but that doesn’t mean that no one is a beginner when it comes to developing Bluetooth-based products. In fact, due to their recent updates, Bluetooth is becoming increasingly popular as demand for power efficient gadgets and wireless technology is increasing. Smart watches is just one of the many examples out there.

For each and every single one of these devices, you’ll first have to register your new product with Bluetooth-functions built in on Bluetooth SIG’s website. You will eventually register (and pay for) your product based on what version of the Bluetooth protocol that you’re using in the product and do so by purchasing a so called Declaration ID (DID).

Yes, a little exaggeration in the title, but that’s essentially what it comes down to. Bluetooth SIG is doing some major updates and changes to the Bluetooth protocol which includes getting rid of the more outdated versions.

There are quite a few versions of the Bluetooth protocol out there, but nowadays you will basically be advised to choose from 2 versions:
v.4.2 or v.5.0
These two versions would be, as I mentioned in the title, the two current versions of Bluetooth.

Although it might seem very simple at first, there are a few things that you need to understand the content of the announcements to fully grasp what these updates and changes mean. That, my friends, is today’s topic of this post.

Archived specifications

Deprecated and Withdrawn Specifications

When a specification reaches the end of its useful life, the Bluetooth® SIG may choose either to deprecate the specification, ending maintenance and restricting its use, or to withdraw the specification from use.

Bluetooth SIG – https://www.bluetooth.com/specifications/archived-specifications

What has changed recently is nothing new, but it’s big. What I mean is that similar changes have been done in the past, but since the market is more dependent on the technology now than before, it matters far more for people when the Bluetooth SIG do the same changes nowadays. Those changes are as follows:

On 01/28/2019, the following policy changes will be enacted:
– Creating new designs that implement deprecated or withdrawn specifications will not be permitted
– New products cannot be added to designs that implement withdrawn specifications
– You cannot pay a $25,000 fee to qualify a new design that implements a deprecated specification
– Purchased but unused $25,000 Declaration IDs will no longer be valid and the cost of any unused $25,000 Declaration IDs will be credited to your account



Bluetooth SIG – bluetooth.com

This piece of information tells us that the process of withdrawing specifications comes down to two different steps, namely deprecation and withdrawal.
While deprecation literally means “to stop use”, it is in this case the first step in the process of making a certain Bluetooth specification obsolete.
Then there’s a time gap between a certain specification gets deprecated until it’s withdrawn. During this gap, as mentioned above, no new designs can be paid for and/or registered and unused DID’s will be invalid. This is only to prevent new devices with deprecated Bluetooth specifications from being produced. To stop the “bloodline” of those specifications if you will. During this gap, however, you are still able to add new products that implement the same fundamental design (e.g. version updates) as you wish.

After this gap is over, when the specification in question is actually withdrawn, you will not be able to add any new products to any existing designs.

Got it? No? It’s alright. In fact, there’s a lot of information and it’s hard to put into context right away. Just to make things clear, let’s make an example:
Company R is currently developing a new device called RIC which implements Bluetooth 4.0 specifications. For now, everything’s alright and Company R can go right ahead with their developments.
When the Bluetooth core specification 4.0 becomes deprecated in Jan 28th, Company R can no longer come up with new product designs such as RIC-2 since that would count as a new design, but Company R can update their original device RIC as long as they don’t change the physical design.
Then, when the Bluetooth core specification 4.0 is finally withdrawn, Company R cannot update their product RIC anymore AND they cannot register new designs under Bluetooth core specification 4.0.

If you’re a developer who is very familiar with Bluetooth already, this information might already be, as certain people refer it as, “peanuts”. If you’re new to the Bluetooth world, however, this is a lot to take in and you might want to read up more about it. We hope this explanation made things clearer for you though 🙂

You can find more info at:
Bluetooth SIG – https://www.bluetooth.com/specifications/archived-specifications

Don’t forget that Raytac Corporation’s modules are all pre-certified with FCC, TELEC, IC, CE, RCM, KC and SRRC. The best part is that more is yet to come!
Take a look at our modules on our website: http://www.raytac.com



Come to visit Raytac at Embedded World #Hall 3 / 3-520

With over 1,000 exhibitors gathering in Nuremberg, Germany on 26 Feb.~29 Feb., 2019 , Embedded World has become one of  the biggest trade fair among the IoT Technologies.

RAYTAC27-20181220_lo

Bluetooth Project: How to get your firmware development started!

Setting up Nordic’s IDE (Integrated Development Environment) is the first step into Bluetooth product development, and it’s also where most developers need support.

In order for developers to be able to smoothly set up their IDE, Raytac hereby provide you with a few easy steps.

First and foremost – In terms of IDEs, there are currently four different ones that are all viable; Segger Embedded Studio (SES), Keil C, IAR and GCC. Among these, SES and GCC are IDEs free of charge while Keil C and IAR both require the developer to pay a license fee to their respective company.

We at Raytac generally recommend SES, as it is an IDE brought forth by both Nordic and Segger together and it uses Segger J-Link. Although GCC is a free IDE, it only builds code and is impractical editting make file or debugging firmware. Thus, it’s not our primary choice.

Therefore, we will hereby provide you a step-by-step guide on how to set up your IDE when using SES.

  1. Where to download SES?

https://www.segger.com/downloads/embedded-studio/

圖片 1.png

  1. Where to Nordic SDK ( Use SDK v15.0.0 as an example)

https://developer.nordicsemi.com/nRF5_SDK/nRF5_SDK_v15.x.x/

  1. Install SES V3.34 and unzip SDK v15.0.0
After SES installed, you may find “Non-Commercial License”

圖片 4.png

  1. SES License Key? http://license.segger.com/Nordic.cgi
  2. How to get free License Key?

Key in Name, Company name, Address and PC’s MAC address. Then press “Request License”, the “License key” will send to your mail box automatically.

Tips: How look up PC’s Mac address: Pls enter DOS mode,

Key in ipconfig/all,

The Mac address will be found in Ethernet card.

圖片 7.png

  1. Copy the license key from mail

圖片 8

  1. Execute SES and find out the “License Manager” in “Tools” option

圖片 9

  1. Select “Activate Embedded Studio”, Paste the “License Key”, Click “Install License”

圖片 10.png

  1. When completed, click”Manage Activation”,shown “License key” well installed.

圖片 11

圖片 12.png

CMSIS Configuration Wizard,

  1. Select “Open Solution” in SES’s File option to open SDK v15.0.0 project

..\examples\ble_peripheral\ble_app_uart\pca10040\s132\ses\ble_app_uart_pca10040_s132.emProject

圖片 13圖片 14

  1. Select “Open Studio Folder” in SES’s File option, then select “External Tools Configuration”. You may find the display as below screen shot. Pls paste the below command. (The command can also be found in below link)

https://infocenter.nordicsemi.com/index.jsp?topic=%2Fcom.nordic.infocenter.sdk5.v15.0.0%2Fsdk_config.html&cp=4_0_0_1_6

圖片 15.png

圖片 16

  1. Please save the “tools.xml”. Afterward, developers may able start over build code and debug works.

Build Code & Debug



Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com          email: cs@raytac.com          Tel: +886.2.3234.0208

New Distributor Announcement (Russia) – PR Electronics

Raytac is glad to announce that we has expanded our distributor network to CIS Countries (Russia), Ukraine, Latvia, Lithuania. The distribution agreement covers sales, marketing, and support for Raytac Corporation’s full range of Modules lines, including Nordic’s proven nRF51 Series, nRF52 Series, and nRF52840 in the territory.

Raytac Nordic Module Line

PR Electronics is a Distributor of Electronic components and Modules

with offices in Russia and Belarus. The company now has 51 employees and 4 sales offices.

Key market segments: Automation, POS terminals and vending systems, Telecommunications, Security systems, Medical, Navigation.

  • Management: ISO 9001:2015 qualified
  • Stock maintenance: Reliability and flexibility
  • Add-on financial logistics
  • Experienced sales team with technical background
  •  Quick technical support through trained FAEs

With recent solid demand and positive feedback receiving from market, we strongly believe that IoT is the future to enhance people’s life.

With PR Electronics’s join of Raytac’s module distribution network, we truly expect he complementary of network portfolio can bring the opportunity and competitive advantage along with a speedy and convenient accessibility for developers.



PR Electronics

Contact: Pavel Lyashenko

Tel: +7 (499) 500-56-40  / Телефон/Факс: +7 (499) 500-56-40

Fax: +7 (495) 937-13-27

Email: lyashenko@premier-electric.com

Website: www.prelectro.com

Address: Andronovskoe Roadway, 26, Moscow 111024 Russia

                  111024 г. Москва, Андроновское шоссе 26

спецификации Bluetooth Core  под версией 5

спецификации Bluetooth Core  под версией 4.2

спецификации Bluetooth Core  под версией 4.1

CD卡-2
Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com          email: cs@raytac.com          Tel: +886.2.3234.0208

Bluetooth SIG Announces Deprecation and Withdraw of Legacy Bluetooth Core Spec Version

Bluetooth SIG announced the deprecation and withdrawal of older versions of the Bluetooth Core Specification.

Bluetooth SIG has policy in place to introduce the deprecation and withdraw process for older testing specification, listing procedure and core specification.

For core specification placed into withdrawn status, it will not be allowed to use the withdrawn version anymore. Any product wishes to qualify the Bluetooth Design under this deprecated version must pay additional deprecation fee.


Please refer to the revised plan and schedule summarized as below,

1.Withdrawal of the following on January 1, 2019:

Bluetooth Specification Version 2.0 + EDR


2.Deprecation of the following on January 1, 2019 and withdrawal on July 1, 2020:

Bluetooth Specification Version 2.1 + EDR

Bluetooth Core Specification Addendum 1

Bluetooth Specification Version 3.0 + HS

Bluetooth Specification Version 4.0

Bluetooth Core Specification Addendum 2

Bluetooth Core Specification Addendum 3 revision 2

Bluetooth Core Specification Addendum 4

Bluetooth Specification Version 4.1

Bluetooth SIG Announces Deprecation and Withdraw of Legacy Bluetooth Core Spec version
Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com          email: cs@raytac.com          Tel: +886.2.3234.0208

RaytacモジュールがChip1Stopでご購入頂けるようになりました

Raytac BT5/BT4.2モジュールと開発キットは、より開発者様へお手軽にご購入頂けるように、

この度Chip1Stop(母体:アロー・エレクトロニクス)にて取扱を開始してもらう事になりました。

IoTやBluetooth low energyに興味がある方は

是非下記リンクより覗いてみてください。

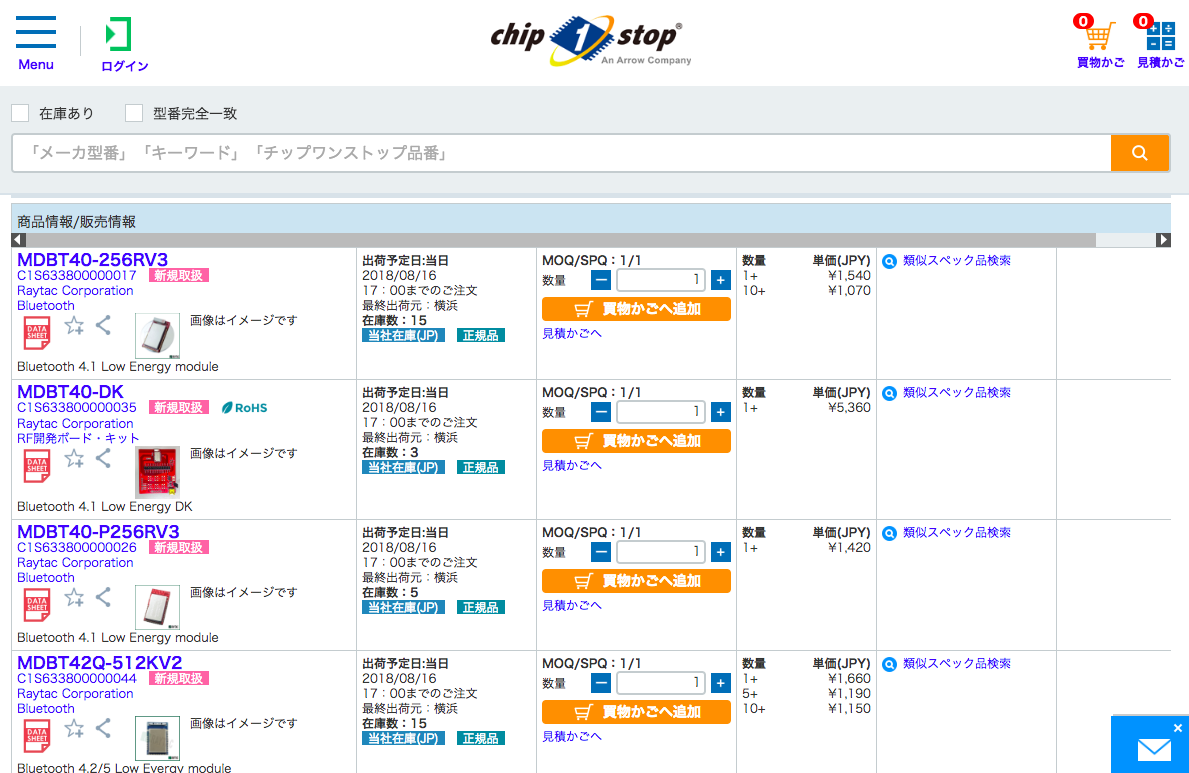

螢幕快照 2018-08-16 10.57.50

Raytac(台湾)はNordicにおける最も重要なサードパーティーモジュールメーカーの一つとして紹介されており、

世界各国へ数多くのBLEモジュールを供給しているあなたのパートナーです。

Raytacチームの情熱が作り出した認証付モジュールがお客様へ利益の最大化をもたらします。

Bluetooth QDID 取得済みモジュール:

BT4.1:  MDBT40 シリーズ

BT5 & BT4.2: MDBT42Q / MDBT42 / MDBT42V

各国電波安全認証関係

FCC (USA)

IC (Canada)

CE (EU)

MIC Telec (Japan)

KC (Korea)

SRRC (China)

NCC (Taiwan)

Raytacの最大のミッションはお客様の開発負担の軽減、プロジェクトの加速、プラグ&プレイのような簡単に搭載できるモジュールを作り続けることです。

Raytac QR Code-BLE&Laser-Landscape.png

Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com          email: cs@raytac.com          Tel: +886.2.3234.0208

Raytac Modules All Made In Taiwan ~ The Best Way To Escape From Trade War

All Raytac’s modules are designed, manufactured, and shipped from Taiwan, which is the best shelter from the trade war.

The emerging trade brawl between the United States and China has raised most customers’ worry. The trade standoff has become more heated in recent days by raising tariff imposed by US government.

Most US customers now are really worried about the current business is highly risk exposure under the conflict.

Raytac Corporation, unlike other modules suppliers has factory or OEM or shipped from China, but ALL Raytac’s modules are Made In Taiwan and Shipped from Taiwan!

Raytac provides all series of Nordic nRF51 & nRF52 solution with different form factor pre-certified modules. With a strong and professional wireless technology background, Raytac has drew the highest attention and reputation in IoT field among Bluetooth Low Energy (Aka BT5, BT4.2. BT4.1 & BT4.0) and IEEE 802.15.3.

Are you still worried about the ramping up trade war in terms of tariff damages the competitive advantage of your company and products?

Why not take a look of Raytac’s module to escape from the business risk!

Raytac Module Spec Sheet Summary

http://raytaccorp.blogspot.tw/2017/07/raytac-bluetooth-module-line.html

Raytac Nordic Module Line



Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com          email: cs@raytac.com          Tel: +886.2.3234.0208

Come to visit Raytac at Embedded World #Hall 3 / 3-613

With over 1,000 exhibitors gathering in Nuremberg, Germany, Embedded World has become one of  the biggest trade fair among the IoT Technologies.
Raytac will be in attendance and present our latest module MDBT50Q series which are built based on Nordic nRF52840 solution and Mesh network implements.
We look forward to seeing you there.
Nordic Module Embeded World
Raytac nRF52840 BLE Module
Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com            Tel: +886.2.3234.0208
email: service@raytac.com

Nordic Mesh Network Development Update

Mesh Network has grabbed the highlight of BLE development.
To keep all Nordic users get the updated information post, Raytac keep closely watching for every step Nordic achieved and summarized current status in below.
Mesh-Message Relay & Flooding.png
