Raytac released MDBT50 series module which deployed Nordic latest nRF52 member, nRF52820 solution. nRF52820’s specification looks similar to nRF51822, but offer superior features than ever.

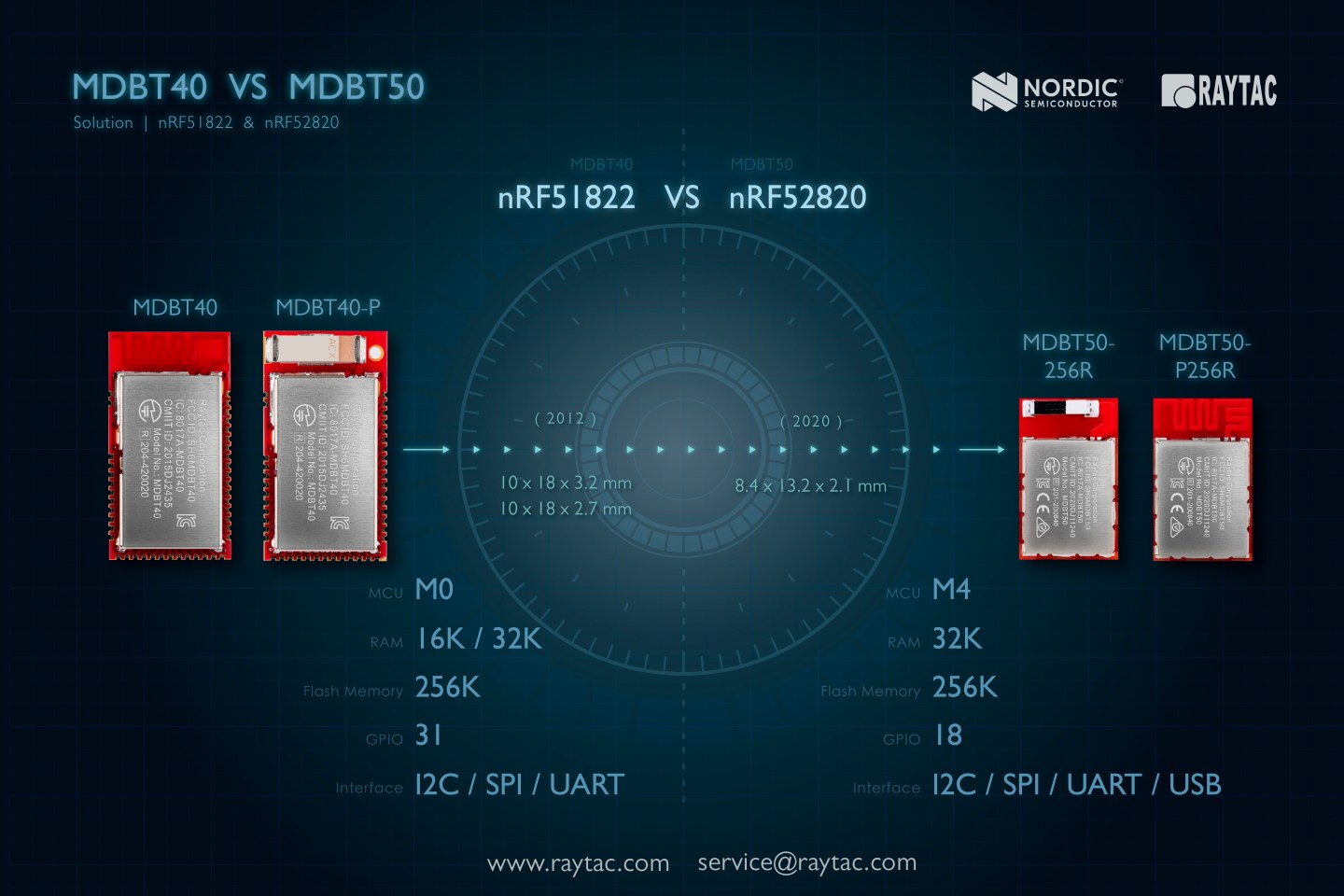

MDBT40 (nRF51822) VS. MDBT50 (nRF52820)

The nRF52820 features an Arm Cortex-M4 processor, 256 KB Flash and 32 KB RAM and offer I2C/SPI/UART but also full speed USB 2.0 interface which provide the maximum flexibility for commercial and industrial applications.

MDBT50 employed nRF52820 can be supplied with a voltage from 1.7 to 5.5 V, -40°C~105 industrial operation temperature. Features Upto +8 dBm output power and supports BT5.2 Direction Finding, high-throughput 2 Mbps, Long Range. Multiprotocol radio provides, Thread and Zigbee and Bluetooth mesh protocols.

MDBT50 series modules covers both nRF52833 and nRF52820 solutions and provide both chip and PCB antenna for customer’s selection. Developers are encouraged to visit Raytac website for more information.

Nordic nRF52 Module Family by Raytac

Raytac Corporation 勁達國際電子有限公司
A BT5.2 & BT5.1 & BT5 module maker based on Nordic nRF52 & nRF51 solution
(nRF5340 & nRF52840 & nRF52833 & nRF52832 & nRF52820 & nRF52811 & nRF52810 & nRF52805 & nRF51822)
www.raytac.com service@raytac.com Tel: +886.2.3234.0208
