Burn your firmware – onto MDBT50Q-RX that is

Hi there, folks!
So you have hopefully downloaded your IDE, you have written your code which you then plan to copy it over onto your MDBT50Q-RX and make it execute your master plan to take over the world!
Seriously, don’t underestimate the Nordic nRF52840 based MDBT50Q-RX. USB sticks with Bluetooth can do wonders 😉
(I am serious! Just look at Plezmo! You see that USB stick? Yep, that’s another Raytac for ya)So, first of all, in order to be able to burn your code onto the USB Dongle, you will have to know the nerdy parts which includes which pins you will have to connect to. In our very well documented specification sheet for MDBT50Q-RX on section 8 which is called “Reference Circuit”, you will find parts down to the left that has “3.3V/SWDIO/SWCLK/GND” marks on it:
Burning pins on MDBT50Q-RX

Further down in the specification sheet, in section 9, you will find pictures illustrating where exactly on the PCB you can find these pins:
Pin locations

Now we know what to look for and where they are, so now we have only got to tell you how to use them.

Some people might not know this, but for developing these things, you need to get something called J-Link to connect your MDBT50Q-RX to your desktop. However, since this J-Link, when buying the official one from SEGGER, is very expensive, we strongly recommend you to just buy the nRF52840-DK from Nordic Semiconductor as it can be used as a J-Link through their software development kit (SDK) called nRFgo Studio and is MUCH CHEAPER than the official J-Link from SEGGER is.
Sidenote: There are a couple of other reasons why you should just get your hands on a nRF52840-DK from Nordic Semiconductor instead of getting a SEGGER J-Link, but that’s not the topic of this post 😉

When this is done, this is finally how you connect your MDBT50Q-RX to your J-Link to make it all work:

MDBT50Q-RX and J-Link connection

Here you will have to pay attention to the fact that you have to connect J-Link pins 3, 5 & 9 to GND. Otherwise, you won’t be able to burn anything onto your dear MDBT50Q-RX.
The physical connection should look like this:

J-Link Cable Connection

Pay attention to the direction of the cable, because that will also matter. The direction we mean in this case is which way the slim strip of red is facing.

As we have just revised our MDBT50Q-RX, our customers who have been developing firmware for our USB dongle should take a look at our previous blog post in which we explain about the changes made or contact us directly at service@raytac.com

Have a good day and we at Raytac wish you smooth and happy tinkering 🙂

Raytac Corporation 勁達國際電子有限公司
A BT5 & BT 4.2 & BTv4.1 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nRF52810 & nRF52840)
www.raytac.com email: cs@raytac.com Tel: +886.2.3234.0208



Raytac Corporation at IT Week Hall 3 & 4 / 11-22

With over 600 exhibitors gathering in Tokyo, Japan from April 10-12, IT Week has become one of the biggest exhibitions within the IoT Technology sector.
Raytac is pleased to be attending this years IT Week and present our full range of module family based on Nordic nRF51822, nRF52832 and nRF52840.

Meanwhile, the latest product, MDBT50Q-RX, a multi protocol nRF52840 dongle will make its second public appearance which powers up the most advanced IoT and Mesh network implementations.

Raytac Corporation 勁達國際電子有限公司
A BT5 & BT 4.2 & BTv4.1 module maker based on Nordic nRF51 & nRF52 solution (nRF51822 & nRF51422 & nRF52832 & nRF52810 & nRF52840)

www.raytac.com email: cs@raytac.com Tel: +886.2.3234.0208

MDBT50Q-RX, a nRF52840 USB Dongle, delivers an easy implement for M2M IoT application

Raytac's MDBT50Q-RX, a Nordic nRF52840 USB Dongle

Raytac’s BT5 certified nRF52840 USB dongle, MDBT50Q-RX, eliminating the need for RF design expertise, and speeding time to market for complex M2M IoT applications. The Dongle built by Raytac’s MDBT50Q-P1M module with FCC/IC/CE/Telec/KC/SRRC/NCC/RCM/WPC certification.

Raytac's MDBT50Q-RX, a Nordic nRF52840 USB Dongle
Raytac’s MDBT50Q-RX, a Nordic nRF52840 USB Dongle

Guess What? Raytac is ready for nRF52840

Mass Production Information Updated
Raytac now is ready for coming nRF52840 SoC with Bluetooth specification BT5.
The module’s mass production schedule will be ascertained after Nordic IC supplying schedule affirmed. (expected around 2017 Q4 or 2018 Q1)

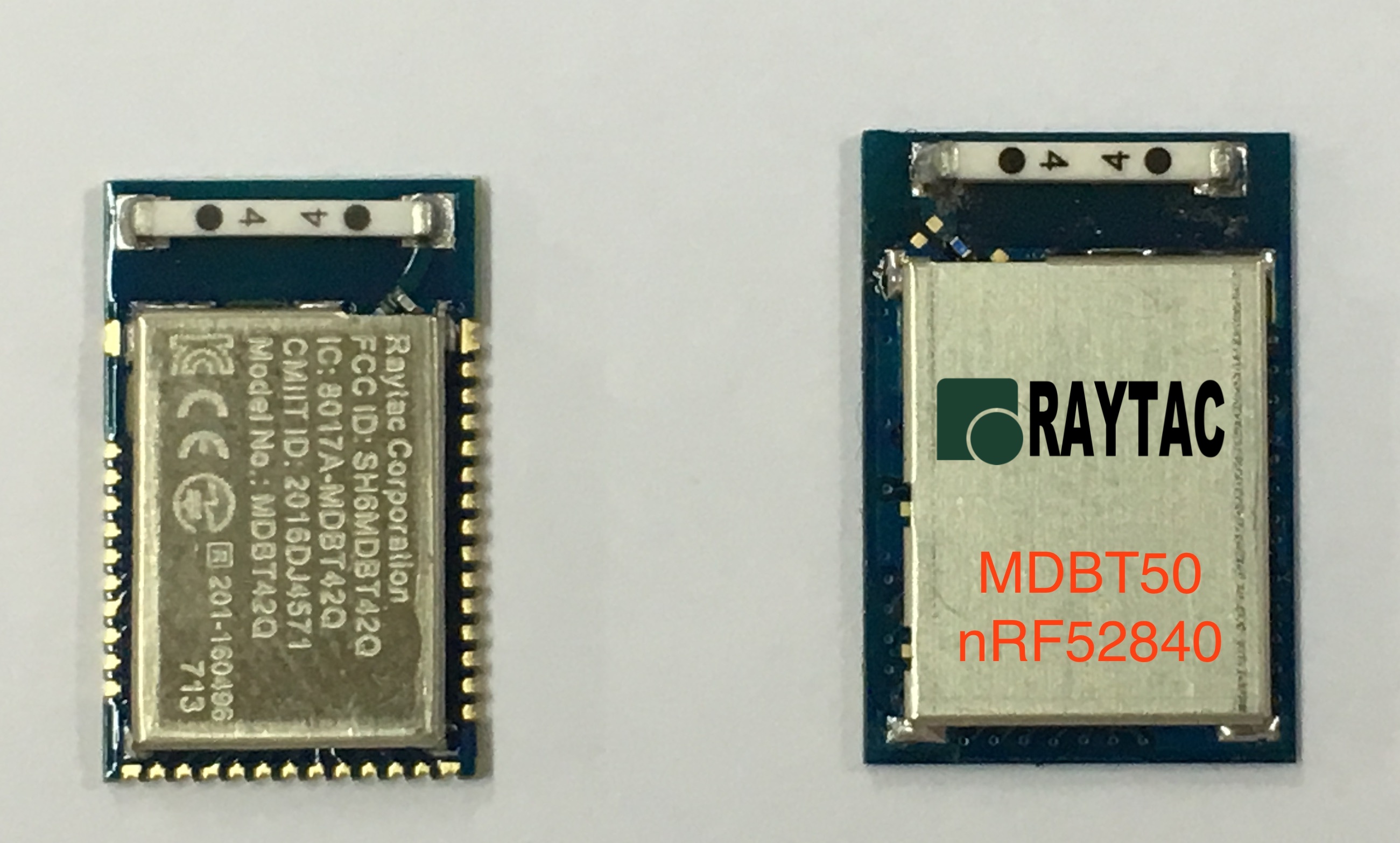

IMG_0773

Nordic nRF52840 Overview



Raytac Corporation

Bluetooth module maker based on Nordic nRF51 & nRF52 solution
(Nordic nRF51822 & nRF51422 & nRF52832 & nRF52840)
Bluetooth Specification Version: BT4.0 & BT4.1 & BT4.2
Tel: +886.2.3234.0208
email: service@raytac.com

Quoted from Nordic


nRF52840

Advanced Multi-protocol SoC supporting Bluetooth 5 / ANT /802.15.4 / 2.4GHz Proprietary Acitve

Bluetooth 5-ready Nordic nRF52840 multi-protocol SoC released!



Raytac Corporation

Bluetooth module maker based on Nordic nRF51 & nRF52 solution
(Nordic nRF51822 & nRF5142 & nRF52832 & nRF52840)
Bluetooth Specification Version: BT4.0 & BT4.1 & BT4.2
Tel: +886.2.3234.0208
email: service@raytac.com
http://raytaccorp.blogspot.tw/2016/12/bluetooth-5-ready-nordic-nrf52840-multi.html

Quoted from Nordic Press released!
https://www.nordicsemi.com/eng/News/News-releases/Product-Related-News/Bluetooth-5-ready-SoC-from-Nordic-redefines-scope-for-smart-home-IoT-and-wearables-by-delivering-4x-range-2x-bandwidth-and-best-in-class-security

Nordic Semiconductor has today released the new nRF52840 multi-protocol SoC with on-chip support for the upcoming Bluetooth 5 specification. In addition to Bluetooth 5 the nRF52840 also introduces on-chip support for the 802.15.4 standard. With Bluetooth 5’s new high throughput and long range modes and 802.15.4, it offers unparalleled development opportunities for connected devices for IoT. These opportunities include advanced single-chip wearables, wearables with payment options and connected home devices.

Bluetooth 5 will undergo ratification by the Bluetooth SIG beginning December 6th2016. Upon completion, we will provide Bluetooth 5-ready SoftDevices to support nRF52840 and the nRF52832 (high-throughput mode only).

About Bluetooth 5

Raytac Corporation

A BT4.1 & BT4.2 module maker based on Nordic nRF51 & nRF52 solution

(nRF51822 & nRF51422 & nRF52832 & nRF51802)

Tel: +886.2.3234.0208

Simple Summary

Scheduled to be released in end or 2016 or early 2017

1.Quadruples range

Extending range will deliver robust, reliable Internet of Things (IoT) connections that make full-home and building and outdoor use cases a reality. The expect power consumption of BT5  is expected to remain the same level as BT4.2.

BT4.2: 10~100M

BT5.X: Upto 400M

2.Doubles speed

Higher speeds will send data faster and optimize responsiveness. Increasing broadcast capacity will propel the next generation of “connectionless” services like beacons and location-relevant information and navigation.

BT4.2: 1M bit/Sec

BT5.X: 2M bit/Sec

3. Data broadcasting capacity by 800%

Bluetooth 5,will quadruple range and double speed of low energy connections while increasing the capacity of connectionless data broadcasts by 800%.

According to SIG’s news press

 “Increasing operation range will enable connections to IoT devices that extend far beyond the walls of a typical home, while increasing speed supports faster data transfers and software updates for devices. And now with the ability to broadcast a much richer set of information, Bluetooth 5 will make beacons, location awareness, and other connectionless services an even more relevant part of an effortless and seamless IoT experience”

“With the major boost in broadcast messaging capacity, the data being transferred will be richer, more intelligent. This will redefine the way Bluetooth devices transmit information, moving away from the app-paired-to-device model to a connectionless IoT where there is less need to download an app or connect the app to a device.”

To redefine the behavior of moving away from app-paired-to-device model must bring a revolutionary user behavior and environment from 2017. That is the most critical point for all product design or related Bluetooth industry need to pay highly attention!
