Raytac now is ready for coming nRF52840 SoC with Bluetooth specification BT5.
The module’s mass production schedule will be ascertained after Nordic IC supplying schedule affirmed. (expected around 2017 Q4 or 2018 Q1)
IMG_0773

nRF52840 is an advanced multi protocol SoC, built by a 32-bit ARM Cortex M4F CPU (ARM Cryptocell-310) with 1MB flash memory, 256K RAM, supports on chip NFC tag and USB2.0.
It is fully compatible to supports Bluetooth Low Energy (BT5), 802.15.4, ANT and proprietary 2.4GHz protocols.
The most favorited function is it is on-air compatible with current nRF51 and nRF52 SoC.
nRF52840_medium

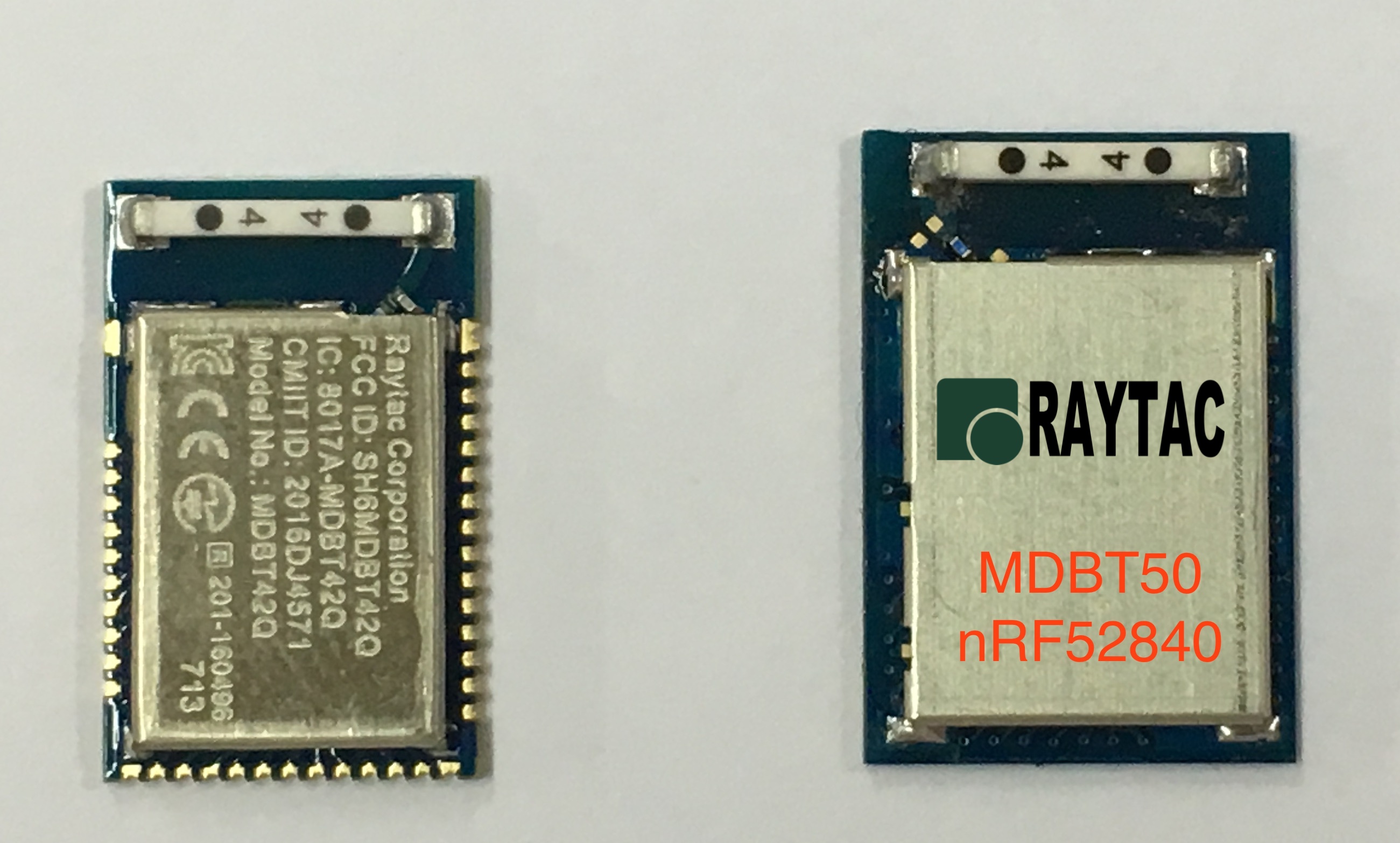

Raytac’s nRF52840 module part no. is designated as MDBT50, which employs compact form factor with 48 GPIO pin. MDBT50 is planning to have Bluetooth 5 certified with full coverage of regional safety certification as other module lines. To slash customer’s risk in RF development ,elevate a time to market efficiency, create a fast and friendly entry in IoT fields are the eternal willing Raytac would like to bring up for all developers.
This creed, we have been earnest woking accordingly; and will keep dedicating to step forward.
Bluetoth 5
圖片 1
nRF52840 Features (Cited from Nordic’s press)
nRF52840 Features
  • Advanced Single chip 2.4 GHz multi-protocol SoC
  • 32-bit ARM Cortex-M4F Processor
  • 1.7v to 5.5v operation
  • 1MB flash + 256kB RAM
  • Bluetooth 5 support for long range and high throughput
  • 802.15.4 radio support
  • On-chip NFC
  • PPI –Programmable Peripheral Interconnect
  • Automated power management system with automatic power management of each peripheral
  • Configurable I/O mapping for analog and digital I/O
  • 48 x GPIO
  • 1 x QSPI
  • 4 x Master/Slave SPI
  • 2 x Two-wire interface (I²C)
  • I²S interface
  • 2 x UART
  • 4 x PWM
  • USB 2.0 controller
  • ARM TrustZone CryptoCell-310 Cryptographic and security module
  • AES 128-bit ECB/CCM/AAR hardware accelerator
  • Digital microphone interface (PDM)
  • Quadrature decoder
  • 12-bit ADC
  • Low power comparator
  • On-chip 50Ω balun
  • On-air compatible with nRF52, nRF51 and nRF24 Series

nRF52840 Applications

  • Advanced high performance wearables
  • Wearables for secure payments
  • Virtual Reality/Augmented Reality systems
  • Smart Home sensor networks
  • Smart city sensor networks
  • High performance HID controllers
  • Internet of Things (IoT) sensor networks
  • Smart door locks
  • Smart lighting networks
  • Connected white goods
Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nRF51802 & nRF52840)
www.raytac.com            Tel: +886.2.3234.0208
email: service@raytac.com

About the Author Raytac Corporation

Raytac Corporation was established in year 2004 by a group of engineer's expertise in the Radio Frequency (RF) technology and a team of experienced multinational senior marketing and production personnel. The core technology know-how in RF Module, BLE Module, Manufacturing of the wireless electronic products, Raytac has committed to the customers a more convenient wireless choice. Our mission, "Making our life more convenient through innovation and application of wireless technology"; we will constantly evolve and adapt from our RF technology, to provide all our customers the best solutions in the wireless world. And, will devote ourselves to be one of the wireless technology leader in the world and have more contribution to the human beings.
