Raytac announces release of AN54H20 Series Module based on Nordic’s nRF54H20 chip solution

發表於 由撰寫發表留言

Raytac Corporation, a Nordic-recommended third-party module manufacturer based in Taiwan, today announces the upcoming release of the AN54H20 modules, which are built on the base of Nordic’s nRF54H20 SoC.

The AN54H20 module comes in a 9.8 x 13.8 x 1.8mm (0.37 by 0.53 by 0.07 inches) dimension factor and offers 3 versions of high-performance antennas, including ceramic chip antenna, PCB-mounted antenna, and uFL connector for external antenna. Output power is adjustable up to +10 dBm and data rate is adjustable up to 4Mbps to maximize RF performance.

Powered by multiple processors, AN54H20 modules provide the IoT field with access to a whole set of improved features, including 2MB flash memory/1MB RAM and bigger processing power for more complicated computations.  It also enhances protection against security threats, providing developers with protection while building technologically advanced IoT applications.

Hardware wise, AN54H20 inherits nRF54H20’s set of versatile, advanced, and low-power peripherals alongside DMA support, including high-speed USB, CAN-FD controller, 14-bit ADC, 2 x I3C and plenty more.  What’s more revolutionary is that AN54H20 brings power efficiency to a whole new level through accurately controlling currency consumptions under various modes, allowing smaller batteries to be implemented in the applications while increasing its life expectancy.

“We see the AN54H20 series as a potential market changer.  The compact size gives developers a seamless switch from the previous generation modules to AN54H20, and the remarkable power efficiency and characteristics AN54H20 brings will offer a magnificent effect to the inescapable hot trend of IoT and other various industries." – Lyon Liu, President of Raytac Corporation.

Product link: https://www.raytac.com/product/index.php?index_m1_id=81&index_m2_id=102

Features

 – Compact size: 9.8 mm x 13.8 mm x 1.8 mm (0.37″ x 0.53″ x 0.07″)

 – Ceramic chip, PCB, and u.FL connector variations available

 – 64 GPIOs

 – Dual Arm Cortex-M33 processors

 – Dual RISC-V co-processors

 – Flash memory: 2 MB and RAM: 1 MB

 – Max TX power: +10dBm

 – Max data rate: 4Mbps

 – Enhanced security features

 – Outstanding power efficiency

 – Advanced and expanded peripherals available

– Highly flexible multiprotocol, ideal for Bluetooth Low Energy, LE Audio(Auracast), Bluetooth mesh, Thread, ANT+, Zigbee, and Matter applications

 – Pre-certified with multiple global regulations & Bluetooth qualification

 – RoHS-/REACH-compliant

Samples of AN54H20 will be available in Q3 2024, please subscribe to Raytac’s WordPress blog:

https://raytac.blog

For more upcoming information.

Welcome to send an inquiry to: service@raytac.com for further discussions.



Edited by Sales Manager: Mr. Tony Yin




Raytac Corporation 勁達國際電子股份有限公司
Bluetooth & WiFi module maker based on Nordic nRF54, nRF53, nRF52, nRF7002 solution
BT5.4 &BT5.3 & BT5.2 & BT5.1 Qualified, FCC/IC/CE/Telec/KC/RCM/SRRC/NCC Pre-Certified.

Bluetooth Solution: nRF54, nRF5340, nRF52840, nRF52833, nRF52832, nRF52820, nRF52811, nRF52810, nRF52805, nRF51822

WiFi Solution: nRF7002
http://www.raytac.com
email: service@raytac.com
Tel: +886.2.3234.0208

Why Does Raytac AT-Command Module Not Require An End Code Mechanism?

發表於 由撰寫發表留言

Developers may be familiar with using ‘\n’ (hex 0x0A) or ‘\r’ (hex 0x0D) as end codes to determine the end of a data packet when writing programs. In the original Nordic SDK example code, ble_app_uart, is to consider the reception of 244 bytes or the presence of ‘\n’ (hex 0x0A) or ‘\r’ (hex 0x0D) as end code as the end of a data packet. The program then sends this received data via BLE to APP.

Developers encountering Raytac AT-Command module for the first time may find it very unfamiliar and be puzzled by the absence of 0x0A or 0x0D end code. You may raise questions about how to receive complete information without relying on these end code? Therefore, we’ll provide explanations for common use cases of AT-Command in both connected and disconnected scenarios:

In the connected condition –

Raytac’s AT-Command module operates in Pass-Through mode. For instance, when the APP sends 0x41 0x42 0x43 (3 bytes) through the module to the MCU, the MCU will receive only 0x41 0x42 0x43 (3 bytes). When APP sends these 3 bytes, there is no need to include the 0x0D end code or 0x0A end code at the end. The same approach applies when the direction of transmission is reversed (i.e., when the MCU sends to the module and then to the APP).

Here, it’s crucial to note that there is a specific consideration for the “Data Interval" (DI) setting between transmitting one data packet and the next. Failure to configure the DI appropriately may result in packet loss and lead to Bluetooth disconnection shortly after data transmission. The recommended DI values vary at different Baud rates, and you can refer to the AT-Command specification for suggested DI values.

As an example, consider Raytac AT-Command module in the scenario of “Mobile App -> Module (MDBT42V-AT) -> MCU," with a Baud rate of 9600, no flow control, and a data length of 244 bytes. In this case, the DI value for transmitting data must be at least 250ms to prevent packet loss.

In the unconnected condition –

Providing explanations to the Bluetooth module by sending AT commands from the MCU (or Console) is illustrated below. There is no need for 0D or 0A end codes at the end.

AT?NAME

AT+NAMESQ-BT

AT?NAME




Edited by Sales Manager: Ms. Vicky Huang

Raytac Corporation 勁達國際電子股份有限公司
Bluetooth & WiFi module maker based on Nordic nRF54, nRF53, nRF52, nRF7002 solution
BT5.4 &BT5.3 & BT5.2 & BT5.1 Qualified, FCC/IC/CE/Telec/KC/RCM/SRRC/NCC Pre-Certified. Bluetooth Solution: nRF54, nRF5340, nRF52840, nRF52833, nRF52832, nRF52820, nRF52811, nRF52810, nRF52805, nRF51822 WiFi Solution: nRF7002
http://www.raytac.com
email:service@raytac.com
Tel: +886.2.3234.020

Raytac Released MDBT50Q (Dual Roles / BT5 Long Range) AT Command Module

發表於 由撰寫發表留言

Raytac is glad to announce a brand new AT command module line released today.

Highlight

* Supports BT5.1/ BT5 Long Range Feature
* Works either as Central (Master) or Peripheral (Slave)
Module
Demo Board

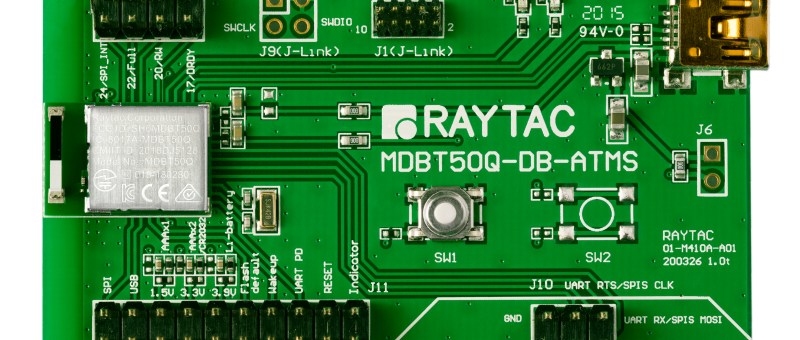

MDBT50Q-AT-UART-ATMS

繼續閱覽 “Raytac Released MDBT50Q (Dual Roles / BT5 Long Range) AT Command Module"

Highlight of Raytac AT Command Central Role Module (Part No.: MDBT42Q-ATM)

發表於 由撰寫發表留言

Raytac’s AT command central role module, deploys Nordic nRF52832 solution.

There are 2 major features which has drawn developers’ dramatic attention.

Which are:

1. Supports scanning other makers’ AT command peripheral module as long as based on peripheral’s UUID/TX/RX character can be matched.

2. Supports scanning Beacon company ID/UUID (31 bytes Beacon)

Raytac AT Command Central Role Module Highght

Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com          email: cs@raytac.com          Tel: +886.2.3234.0208

Raytac Blog

Raytac Central Role AT Command Module Released

發表於 由撰寫發表留言
Raytac AT Command Family

AT command module, an easy solution provides developers a quick breakthrough to Bluetooth connection. Without firmware effort needed, simply have commands setting on MCU and the start to enjoy the implement of bridging connectivity between devices through Bluetooth.

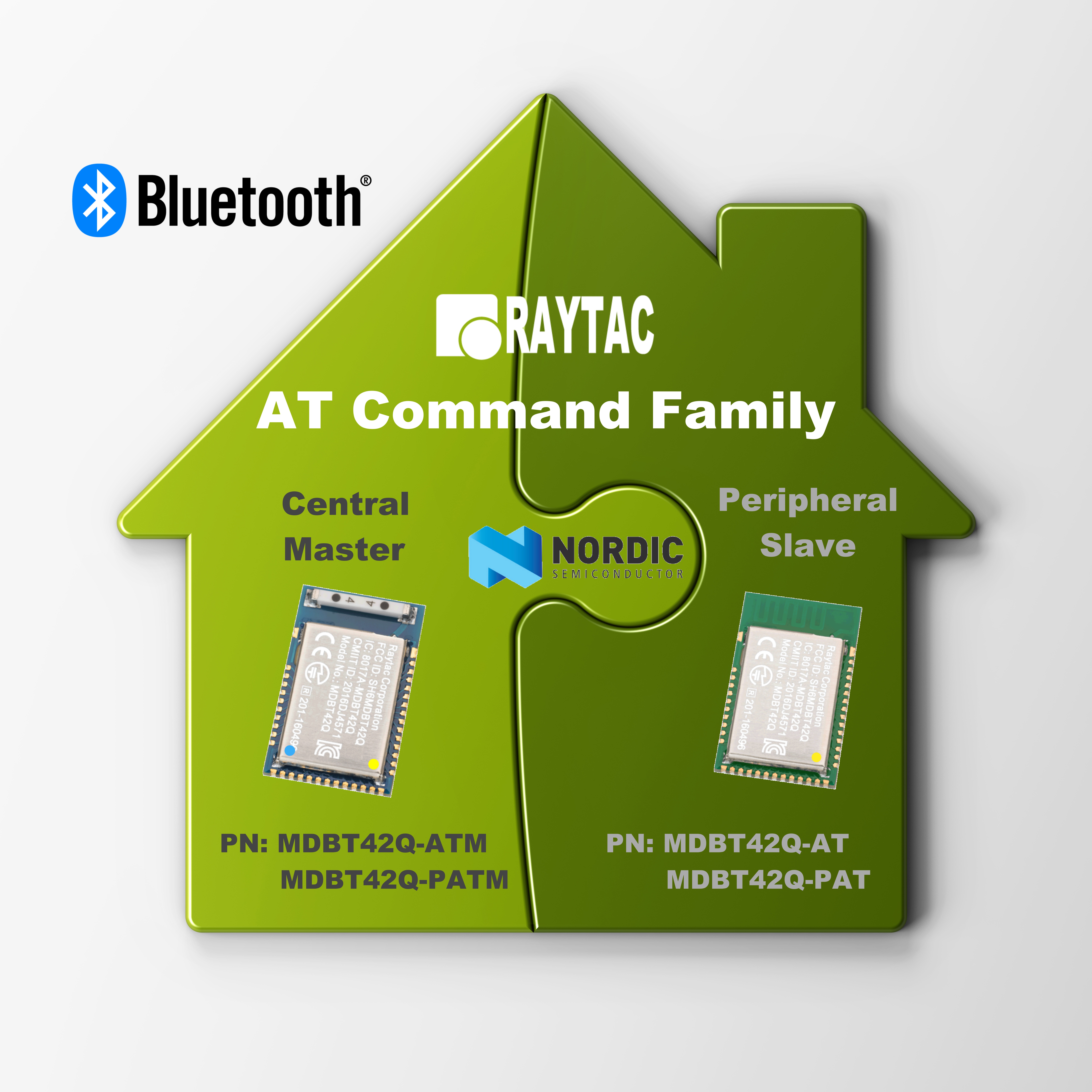

Raytac AT Command Family
Raytac AT Command Family

After Raytac’s Peripheral (Salve) role AT command module released, the demand of Central role has been highlighted by developers.

To have a completed solution, Raytac today announced Central role, as known as Master, AT command module released.

Part No.:

MDBT42Q-ATM (Chip Antenna Version)

MDBT42Q-PATM (PCB Antenna Version)

Specification Download (Please Click Me)

Differ from Peripheral role AT command module built by nRF52810 solution, Central role AT command module deployed Nordic nRF52832 which employees 64K RAM and 512K Flash Memory.

Central Role AT Command Module: MDBT42Q-ATM
Central Role AT Command Module: MDBT42Q-ATM

Central Role AT Command Module: MDBT42Q-PATM
Central Role AT Command Module: MDBT42Q-PATM

The AT command modules, same as Raytac’s all other lines,  are Bluetooth qualified (BT5/BT4.2) and FCC/IC/Telec/KC/SRRC/NCC pre-certified and CE compliant. A completed hardware and preloaded AT Command firmware solution not only simplify the designs and reduce BOM cost, but also waive the cost of regulatory burden and speed up time to market efficiency.
Raytac Corporation
A BT4.1 & BT4.2 & BT5 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nR52810 & nRF52840)
www.raytac.com          email: cs@raytac.com          Tel: +886.2.3234.0208

Raytac Blog

Raytac AT-Command Module Solution Product Road Map

發表於 由撰寫1 則迴響
nRF52810 AT-Command Evaluation DK Board is a multifunction hardware design for several applications.
Not only a AT-Command Peripheral (Slave) role released recently, but also Central (Master) role deployed Nordic nRF52832 & nRF52840 Solution in the near future.

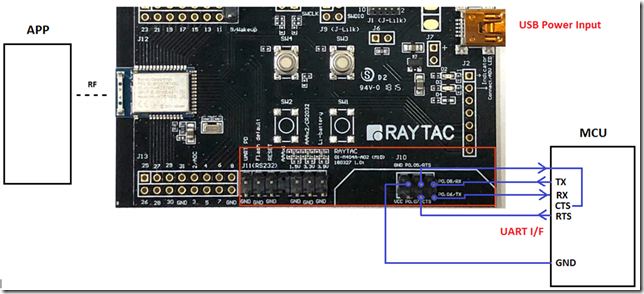

MDBT42Q-PAT Connection
