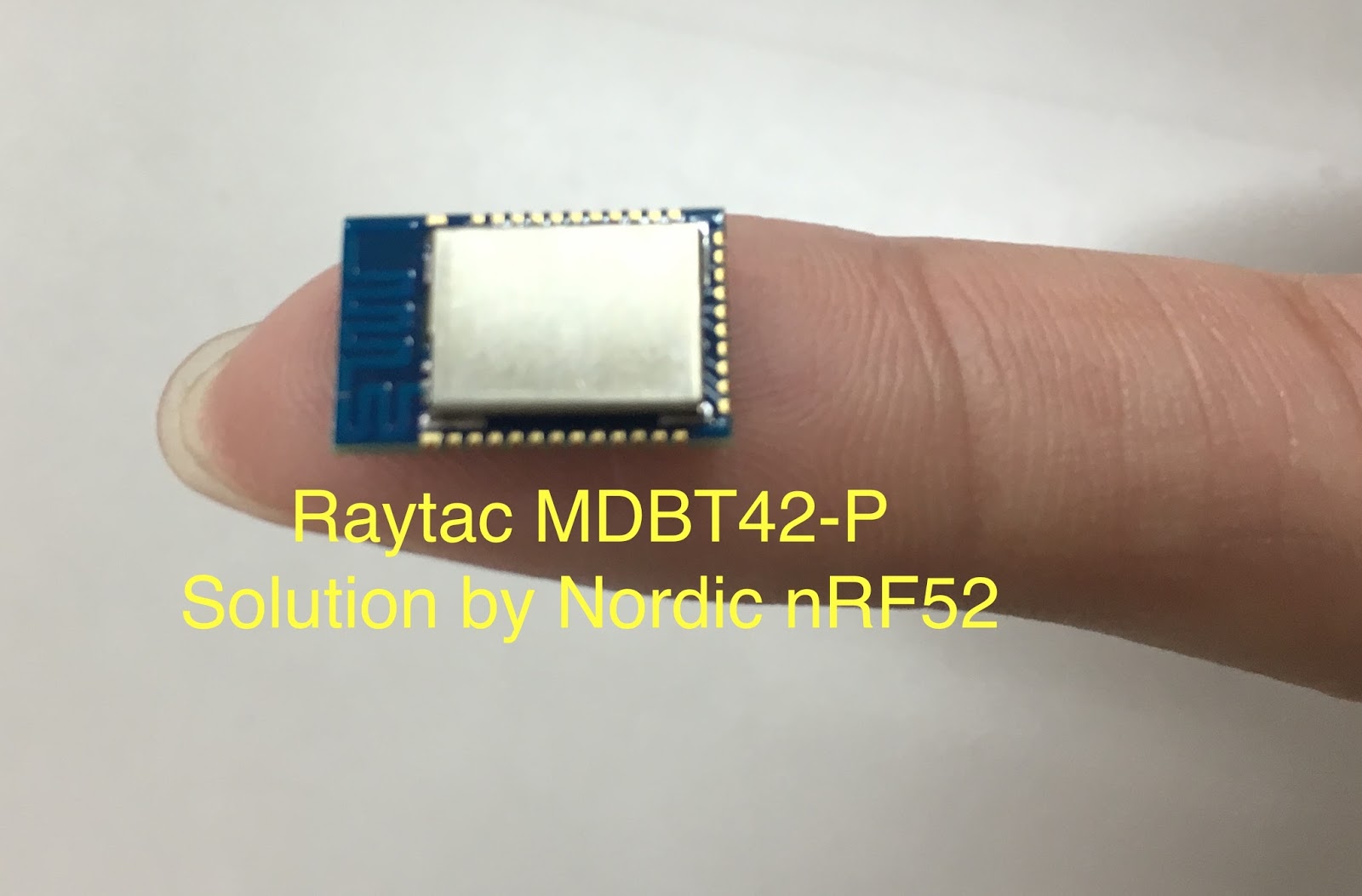

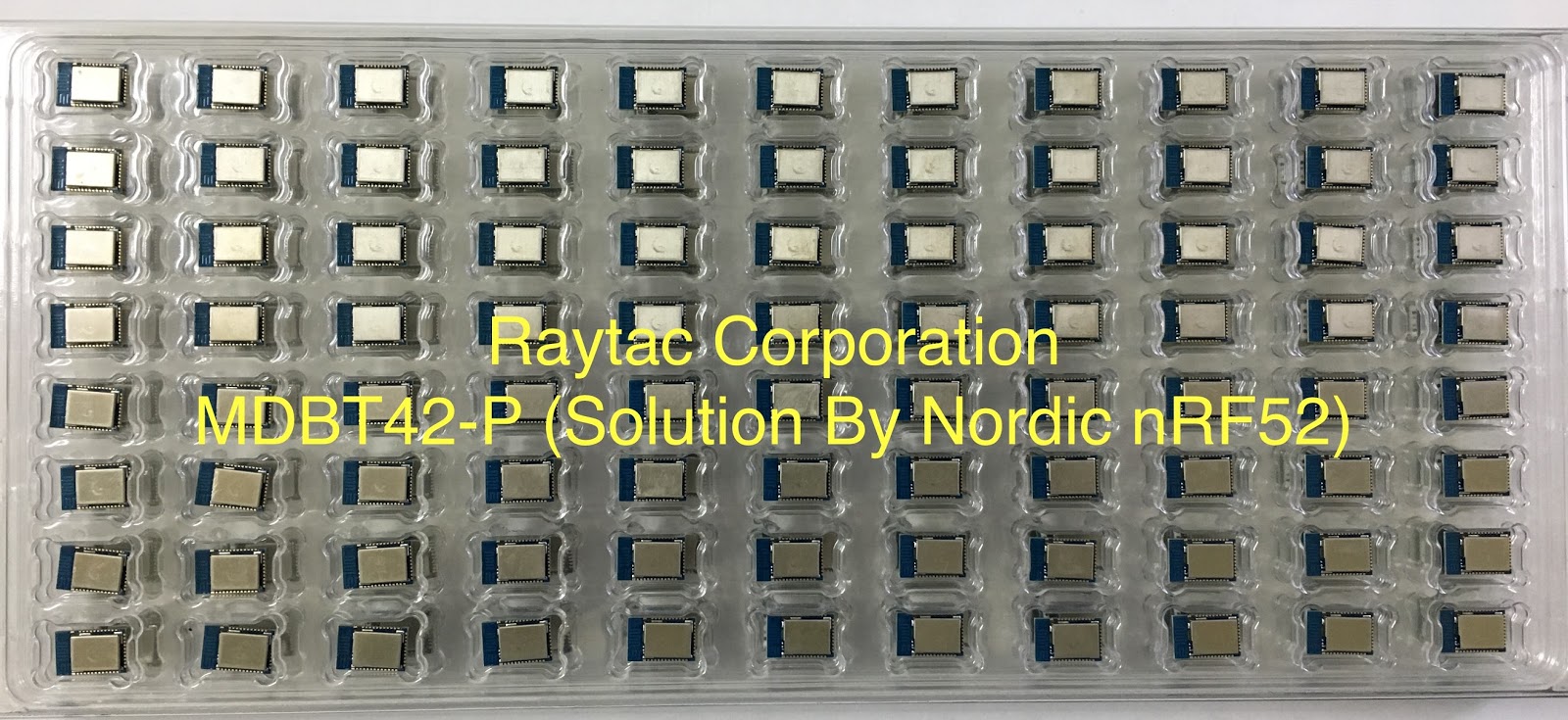

After sever months striving in design, testing, and evaluation, Raytac would like to announce that MDBT42 / MDBT42-P has enter to mass production stage.

MDBT42 is a small form factor module solution by Nordic nRF52.
The size is 13.8×1.8×1.9mm with 32 GPIO pin out and 2 antenna type (Chip & Printed PCB) for option.

MDBT42/MDBT42-P designed based on Nordic nRF52xxx SoC with integrated Bluetooth Bluetooth 4.2 stack. The modules incorporates: GPIO, UART, SPI, I2C,and ADC interfaces for connecting peripherals and sensors.

A completed coverage of BLE software stack: Proximity Profile; Heart Rate Profile; Health Thermometer Profile; Blood Pressure Profile; Running Speed & Cadence Profile; HID Over GATT Profile; Alert Notification Profile; Glucose Profile; Cycling Speed & Cadence Profile; Time Profile.

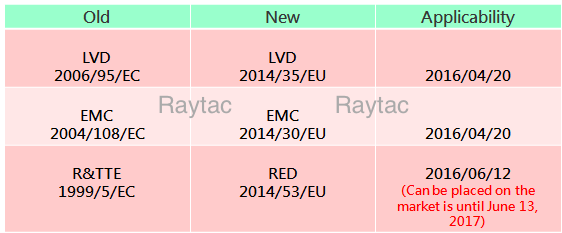

A widely coverage of safety regulation: FCC (USA); IC(Canada); CE (EU); Telec(Japan); SRRC (China); KCC (Korea); NCC (Taiwan).

MDBT42 series is born for an ideal fully supporting customers to suit the needs of any application and implements!

nRF52832 ANT Protocol Stacks: S212 and S332 Available Now

2016 年 07 月 28 日2016 年 07 月 28 日by Raytac CorporationLeave a comment

Raytac Corporation

A BT4.1 & BT4.2 module maker based on Nordic nRF51 & nRF52 solution

(nRF51822 & nRF51422 & nRF52832 & nRF51802)

www.raytac.com

Tel: +886.2.3234.0208

email: service@raytac.com

http://raytaccorp.blogspot.tw/2016/07/nrf52832-ant-protocol-stacks-s212-and.html

http://bluetooth.tokyo

Quoted from “ANT Wireless Tech Update 22 July, 2016”

ANT Wireless announced the formal production release of the ANT and concurrent ANT/BLE protocol stacks designed for Nordic Semiconductor’s nRF52832 SoC. The S212 (ANT only) and the S332 (concurrent ANT/BLE) are now available for licensing and download at thisisant.com on the nRF52832’s SoftDevices tab.

https://www.thisisant.com/developer/components/nrf52832/#tab_protocol_stacks_tab%20%20or%20contact%20us

Developers currently using alpha versions of the S212 or S332 SoftDevices are encouraged to upgrade to the new production ready versions by agreeing to the updated license agreement and incorporating the production ready SoftDevices into their designs.

Note: In a move to simplify the licensing process, ANT Wireless has combined the evaluation terms of use and the commercial terms of use into a single license agreement.

MDBT42 Module (Nordic nRF52832 Solution) Now Launched

2016 年 07 月 06 日2016 年 07 月 06 日by Raytac CorporationLeave a comment

Raytac Corporation

A BT4.1 & BT4.2 module maker based on Nordic nRF51 & nRF52 solution

(nRF51822 & nRF51422 & nRF52832 & nRF51802)

www.raytac.com

Tel: +886.2.3234.0208

email: service@raytac.com

http://raytaccorp.blogspot.tw/2016/07/mdbt42-module-nordic-nrf52832-solution.html

http://bluetooth.tokyo

MDBT42, based on Nordic nRF52832 WL-CSP solution, is about to be armed and targeting for IoT industry.

Raytac’s module line in 2016 now has become ready and all well loaded.

Nordic Semiconductor launches the most advanced, high-performance single chip Bluetooth low energy SoC in a tiny package size

Targeting next-generation wearables and space-constrained IoT applications, the nRF52832 Wafer Level Chip Scale Package (WL-CSP) has a super-compact 3.0 by 3.2mm footprint that occupies one quarter of the footprint area of Nordic’s standard 6.0 by 6.0mm QFN48-packaged nRF52832, yet offers the same full feature set

Oslo, Norway 2016/07/05

Nordic Semiconductor today announces the availability of a Wafer Level Chip Scale Package (WL-CSP) variant of its nRF52832 Bluetooth® low energy (formerly known as Bluetooth Smart) System-on-Chip (SoC) that occupies a quarter of the footprint area of the standard-packaged Nordic nRF52832 and targets next-generation, high-performance wearables and space-constrained IoT applications.

The nRF52832 WL-CSP has a super-compact 3.0 by 3.2mm footprint compared to the standard 6.0 by 6.0mm footprint of its larger but conventionally-packaged nRF52832 QFN48 cousin, yet offers the same full single-chip feature set and best-in-class, ultra-low-power application operation. This includes a powerful on-board 64MHz ARM® Cortex®-M4F processor that enables protocol and application task processing to be completed in unprecedentedly short time-frames, thus allowing power-saving sleep modes to be entered much quickly compared to competing devices.

Like the nRF52832, the nRF52832 WL-CSP features: 512kB Flash and 64kB RAM; on-chip NFC™ tag for consumer-friendly Touch-to-Pair; best-in-class ultra-high performance, ultra-low-power multi-protocol Bluetooth low energy, ANT™, and proprietary 2.4GHz radio; 5.5mA peak RX/TX currents; an on-chip RF Balun; plus a unique fully-automatic power management system that makes achieving optimal power consumption easy for designers.

The nRF52832 WL-CSP is compatible with Nordic’s Bluetooth 4.2 stacks and supporting SDKs including the latest S132 multi-role concurrent software stack, nRF5 SDK, nRF5 SDK for HomeKit, and nRF5 SDK for AirFuel (resonant wireless charging).

“The availability of a super-compact footprint nRF52832 brings new design opportunities to wearables and other space-constrained IoT applications,” comments Kjetil Holstad, Product Manager Ultra Low-Power Wireless at Nordic Semiconductor. “And this SoC is available now in high production volumes for immediate inclusion in upcoming product development.”

Holstad adds: “The evolution of wearables to date has only ever gone one way: ever increasing performance and functionality in ever-slimmer, lighter, form factors. The nRF52832 WL-CSP is by a clear margin, the smallest and most advanced Bluetooth low energy SoC available on the market today.”
