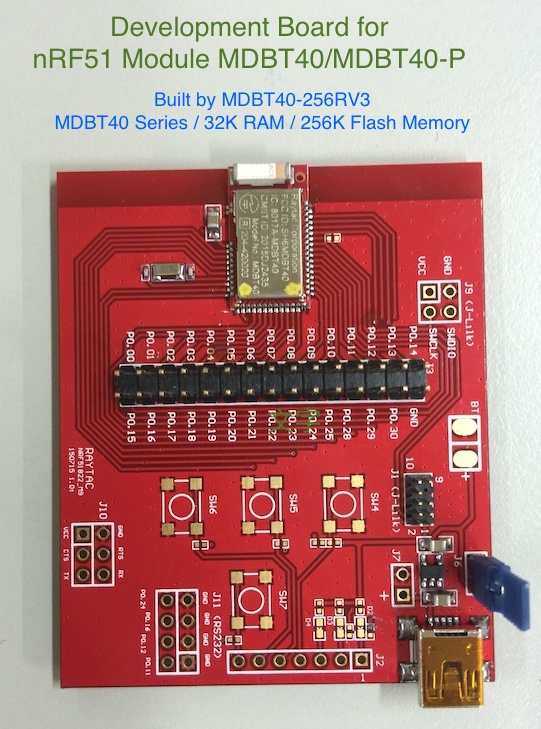

img_4067

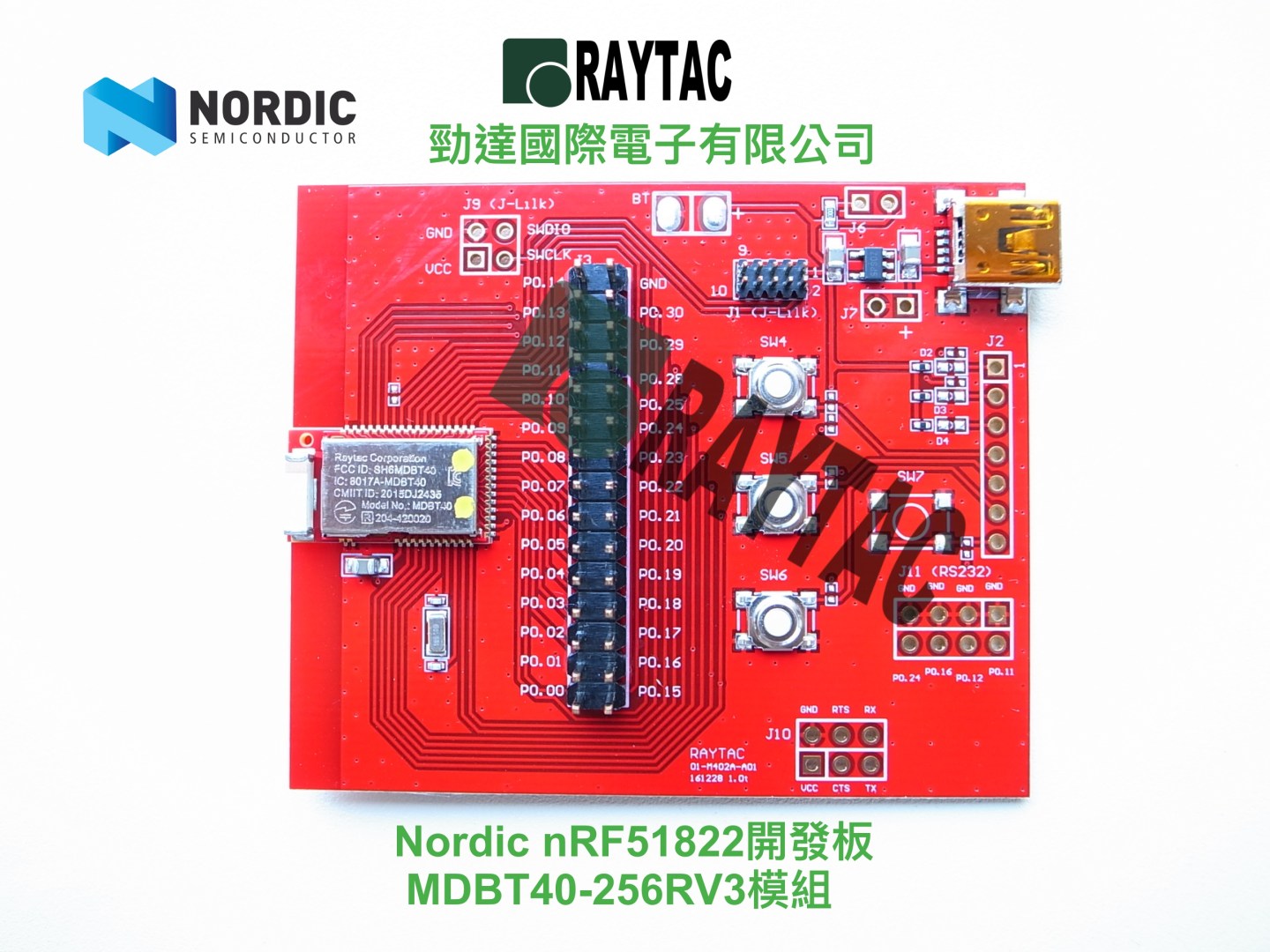

Many customers are using Raytac’s Demo board for firmware development and debug.

Here we provide easy setup way for customer reference.

Programming software: Nordic nRFgo

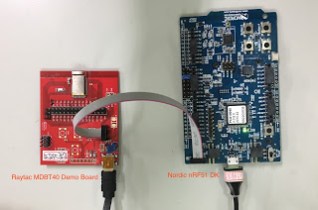

Connection

img_0260  fullsizerender-5

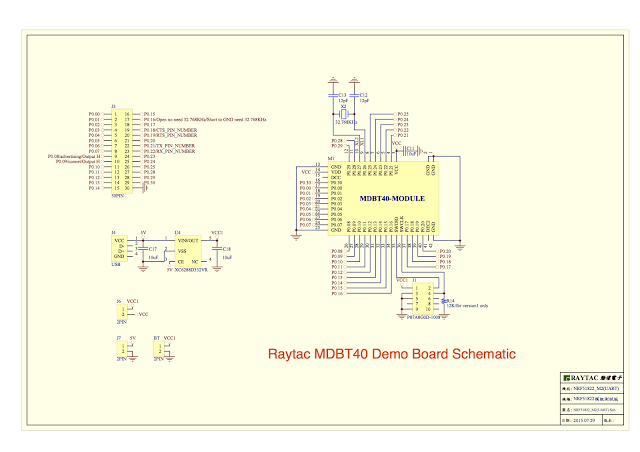

MBT40 Demo Board Schematic

nrf51822_m2uartschematic-150729

Raytac Corporation
A BT4.1 & BT4.2 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nRF51802)
www.raytac.com            Tel: +886.2.3234.0208
