To help customers to proceed the SMT process, Raytac provides the Reflow Profile reference.

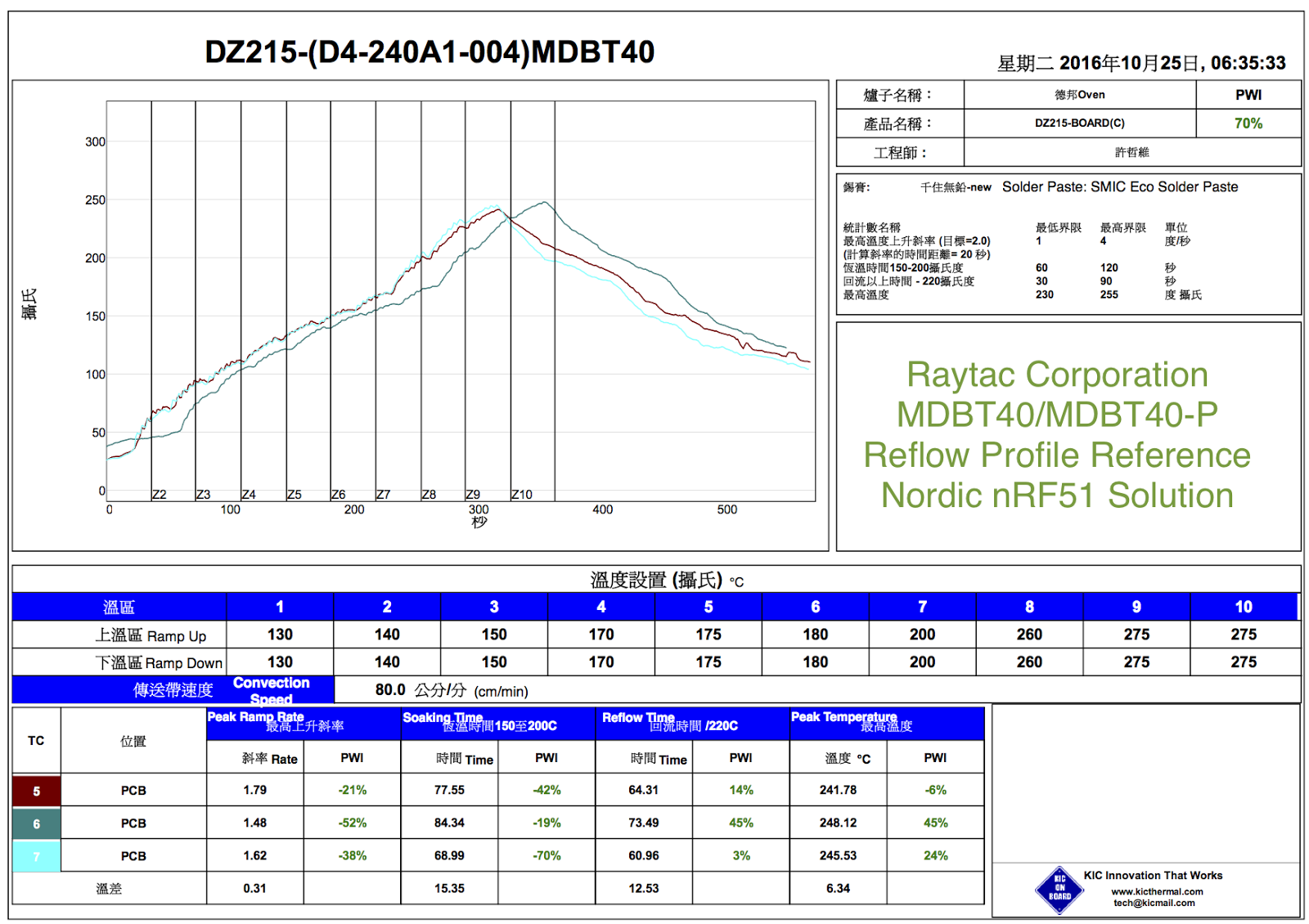

The module MDBT40/MDBT40-P Reflow Profile provided in below is considered as the reference only.
Due to SMT facility and solder paste may be different by each factory, Raytac is strongly suggesting all customers may proceed the trial run first to get the best and right reflow profile which works for their own facility.
A BT4.1 & BT4.2 module maker based on Nordic nRF51 & nRF52 solution
(nRF51822 & nRF51422 & nRF52832 & nRF51802)
